Cast Steel 2 Piece Trunnion Ball Valve 8" 300LB WCB RF
Key Specifications / Features
Model No.: Hits: 0
8" 300LB Trunnion Ball Valve is made according to API 6D standard. The valve body is made of WCB. It has the structural characteristics of Two-Piece, Trunnion Mounted Ball, Full Bore, Fire-Safe & Anti-Static, Blowout-Proof Stem. Its connection mode is RF. And it has Worm Gearbox with Handwheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Trunnion Ball Valve |
| Size | 8” |
| Pressure | 300LB |
| Connection | RF |
| Operation | Worm Gearbox with Handwheel |
| Body Material | A216-WCB |
| Design Norm | API 6D |
| Face to face | ASME B16.10 |
| Flange ends | ASME B16.5 |
| Test & Inspection Code | API 6D |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Cast Steel 2 Piece Trunnion Ball Valve 8" 300LB WCB RF provides stable sealing performance with low operating torque, ideal for medium-pressure oil & gas and industrial pipeline systems (2 piece trunnion ball valve 300LB WCB).2. RF Flanged WCB Trunnion Ball Valve ensures secure installation and reliable shut-off with durable cast steel construction, suitable for large-diameter flow control applications (8 inch trunnion ball valve RF 300LB).

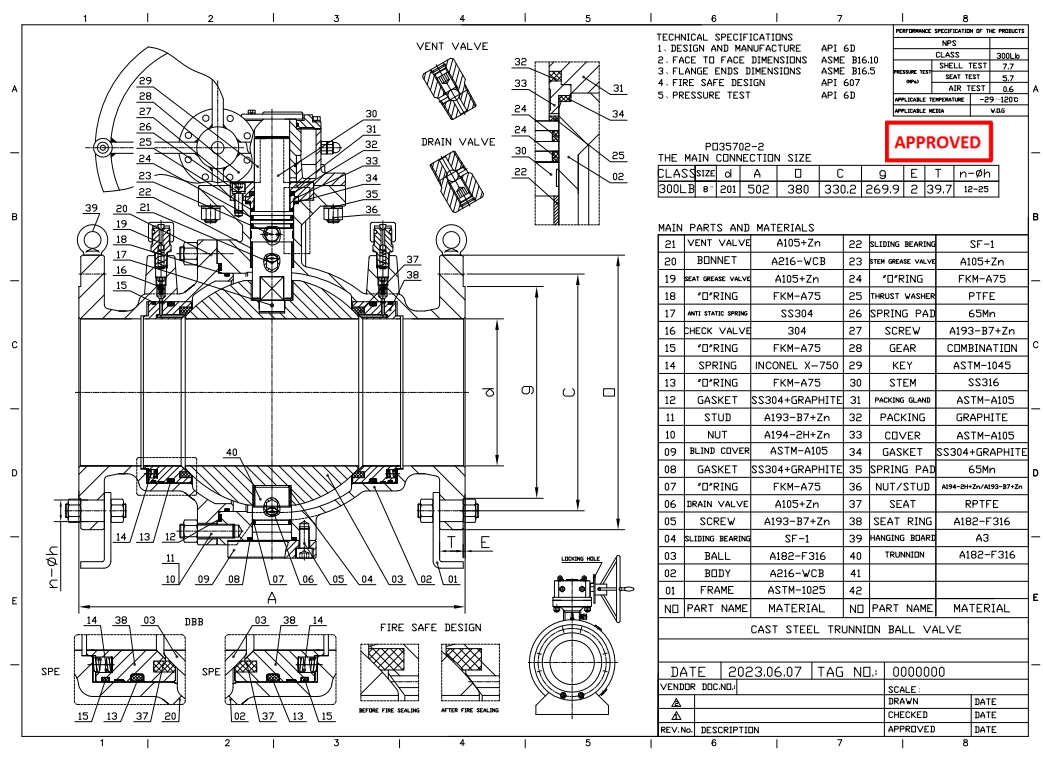

Technical Drawing

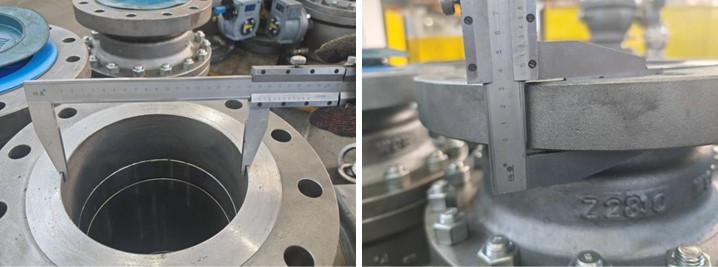

Dimension Checking

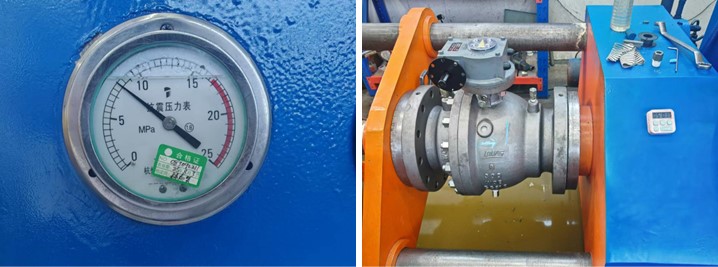

Pressure Testing

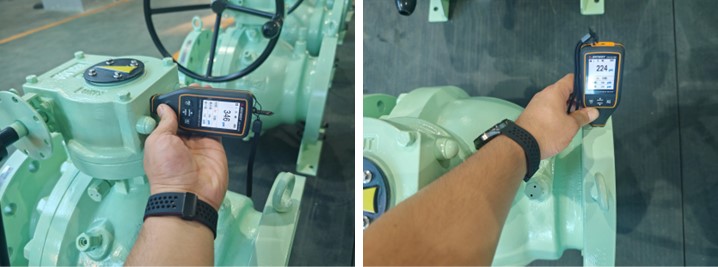

Painting

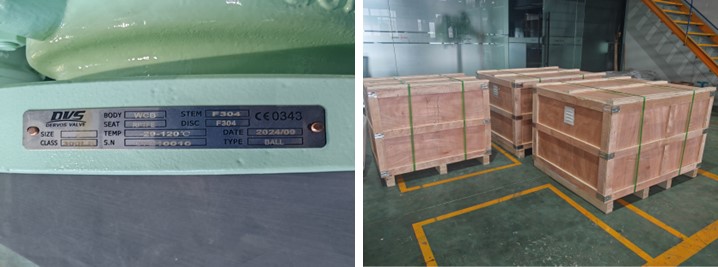

Nameplate & Packing

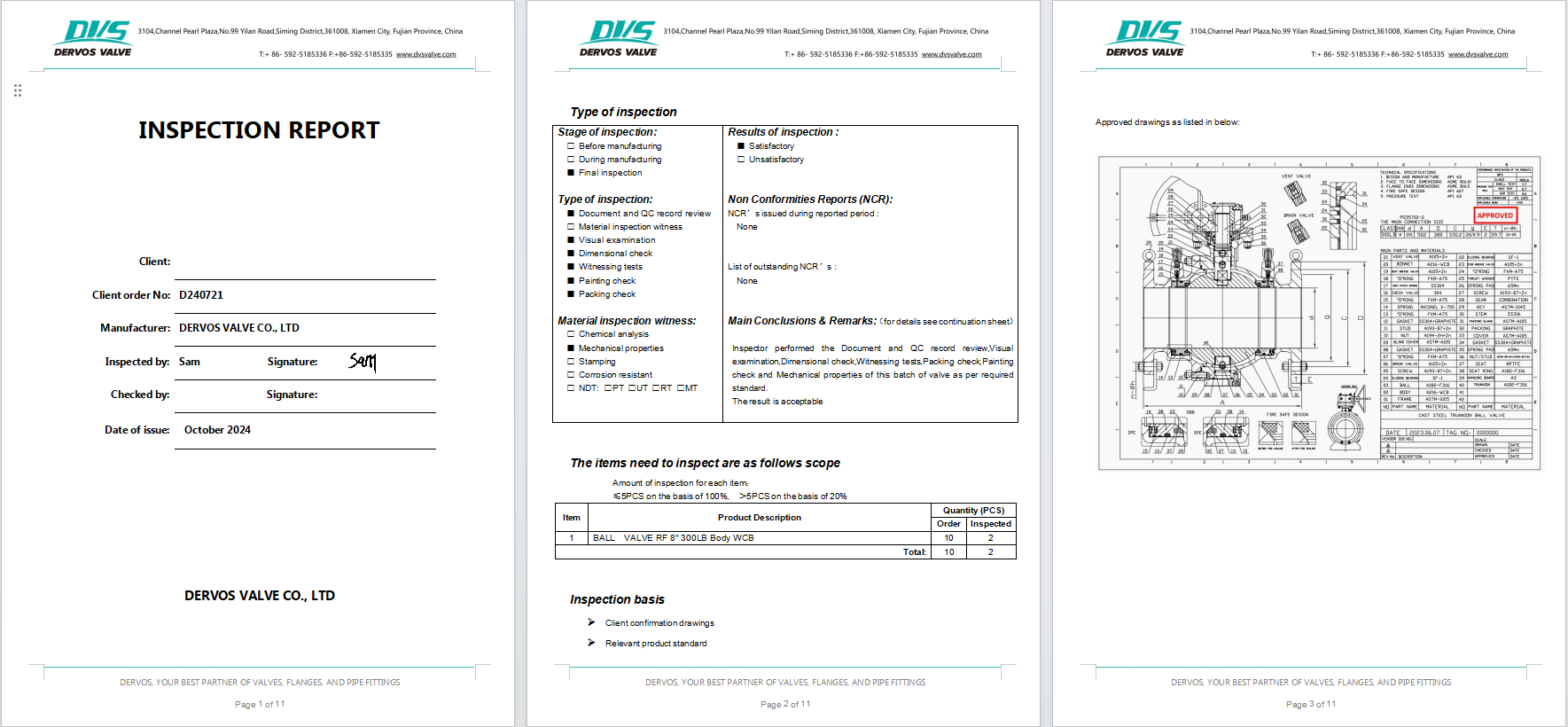

Inspection Report
