DN150 PN16 Butterfly Valve EN1092-1 B1 316Ti EN593
Key Specifications / Features
Model No.: Hits: 0
DN150 PN16 Butterfly Valve is made according to EN593 standard. The valve body is made of 316Ti. It has the structural characteristics of Triple Offset, Bidirectional 1:1 Pressure Test and structural length of 210mm. Its connection mode is EN1092-1 B1. And it has Worm Gear Operator operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Butterfly Valve |
| Size | DN150 |
| Pressure | PN16 |
| Connection | EN1092-1 B1 |
| Operation | Worm Gear Operator |
| Body Material | 316Ti |
| Design Norm | EN 593. |
| End to End | EN 558-1. |
| Flange dimension | EN1092-1 |
| Test & Inspection Code | EN12266-1. |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Natural Gas,Gas,Water,Steam, Oil,etc |
Features
1.EN 1.4571 (316Ti) stainless steel construction provides enhanced resistance to corrosion and thermal fatigue.2.Butterfly valve designed to EN 593 with EN1092-1 B1 flange ensures smooth operation and reliable sealing in PN40 pipeline systems.

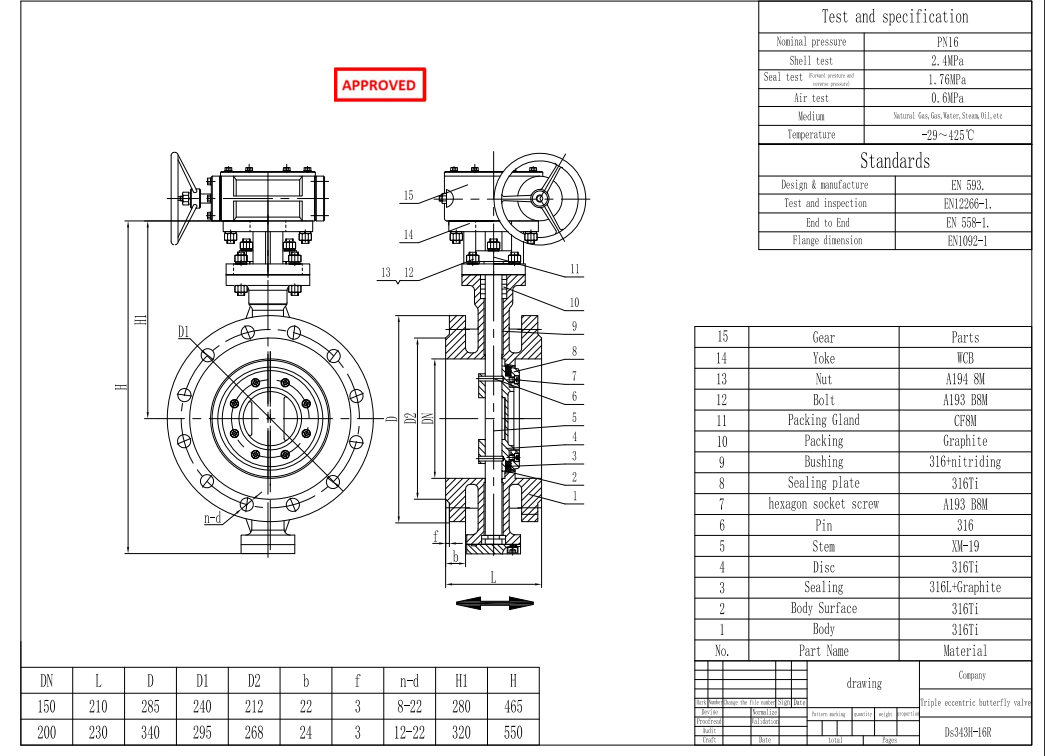

Technical Drawing

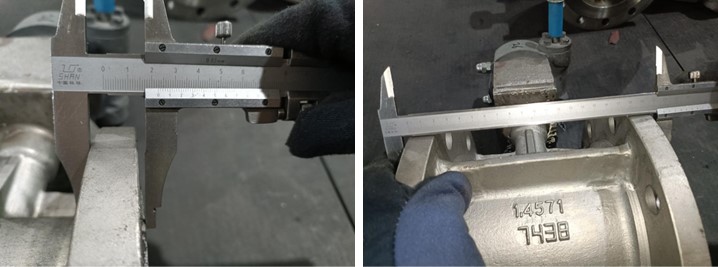

Dimension Checking
Pressure Testing

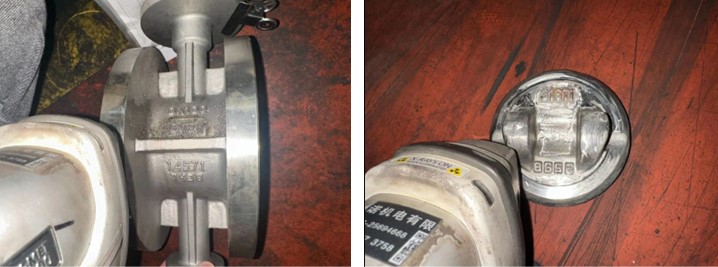

Spectrum

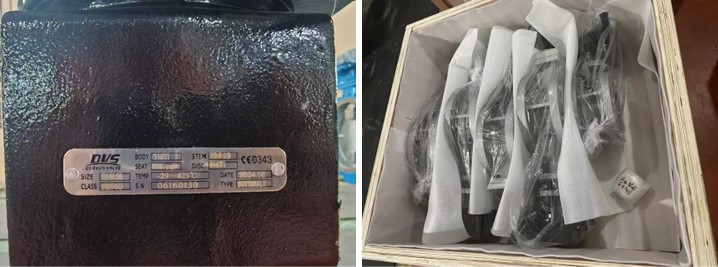

Nameplate & Packing

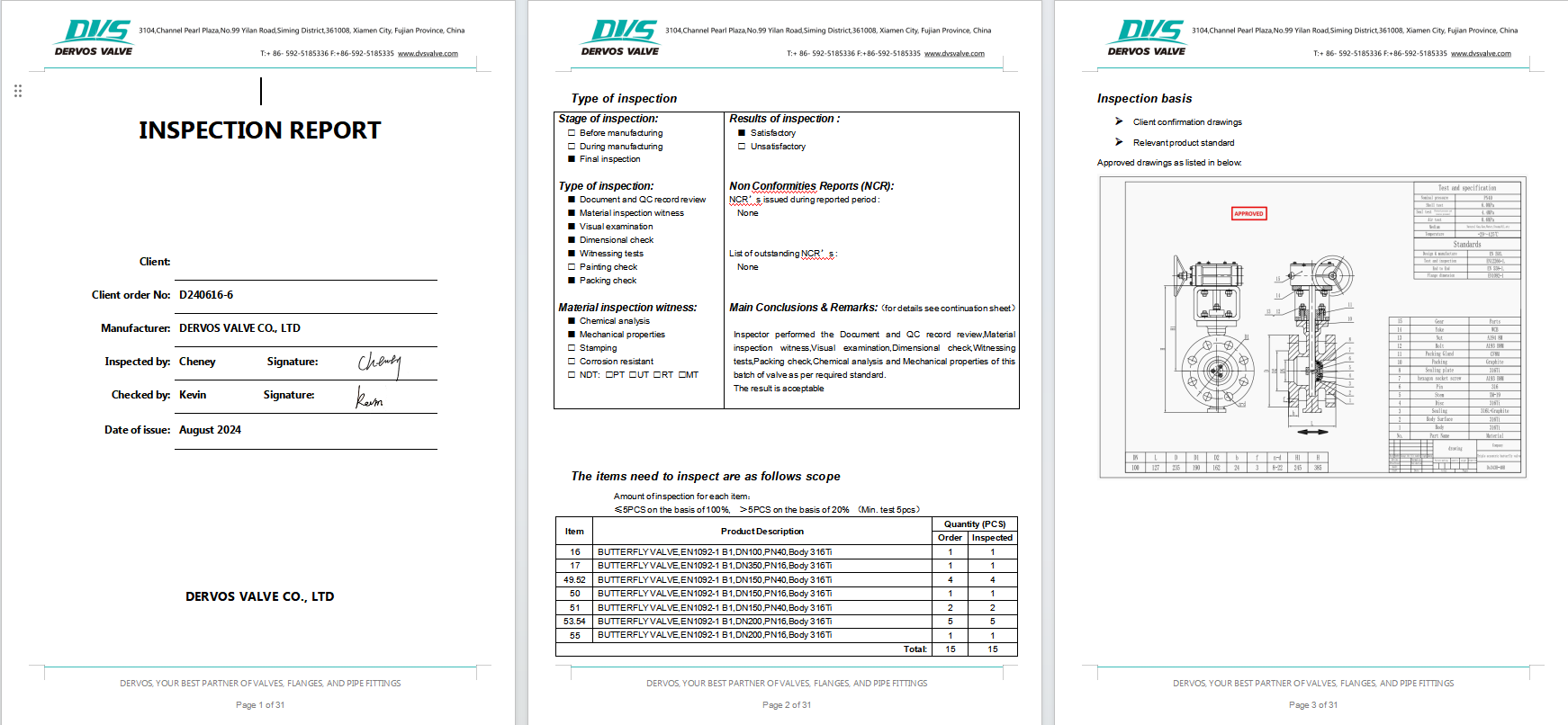

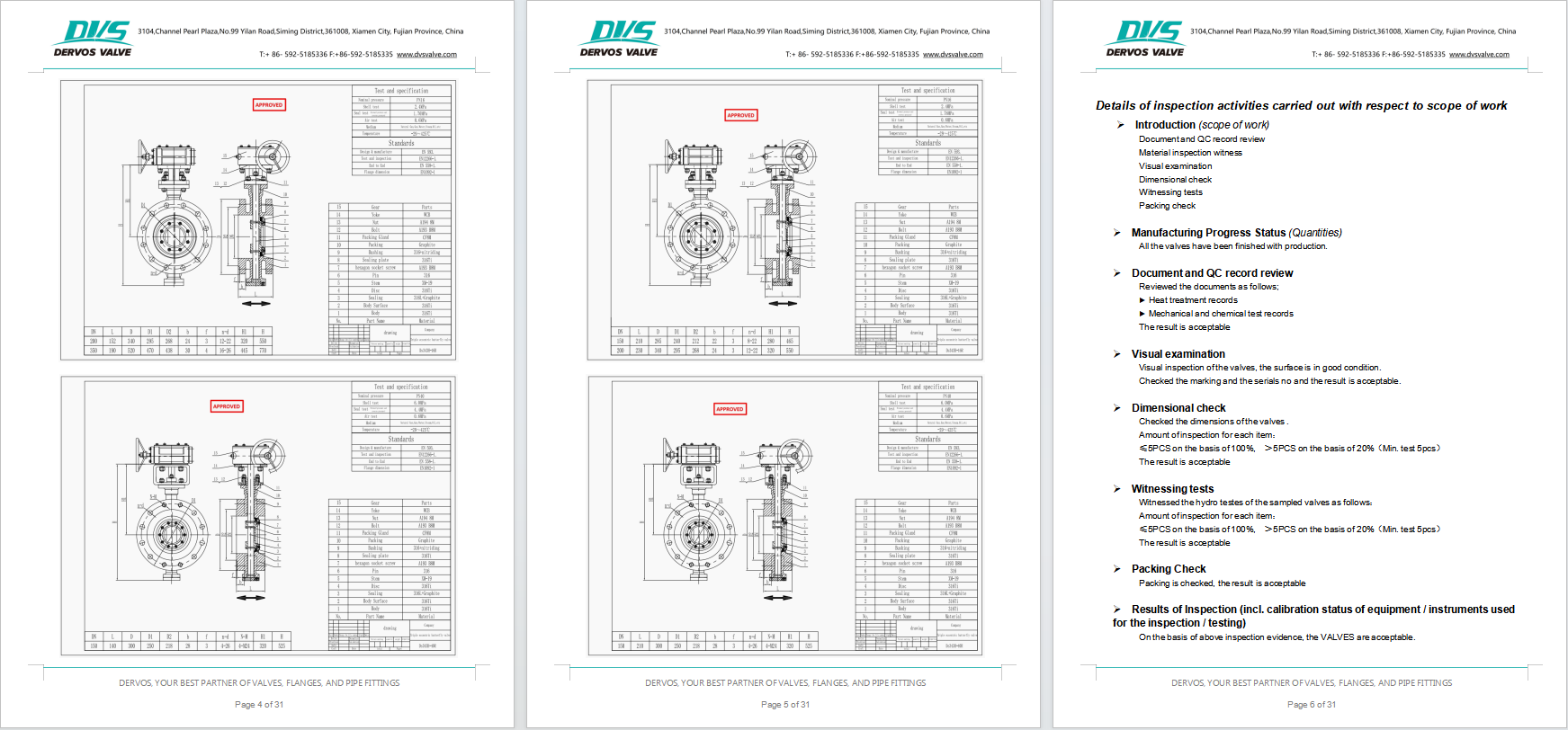

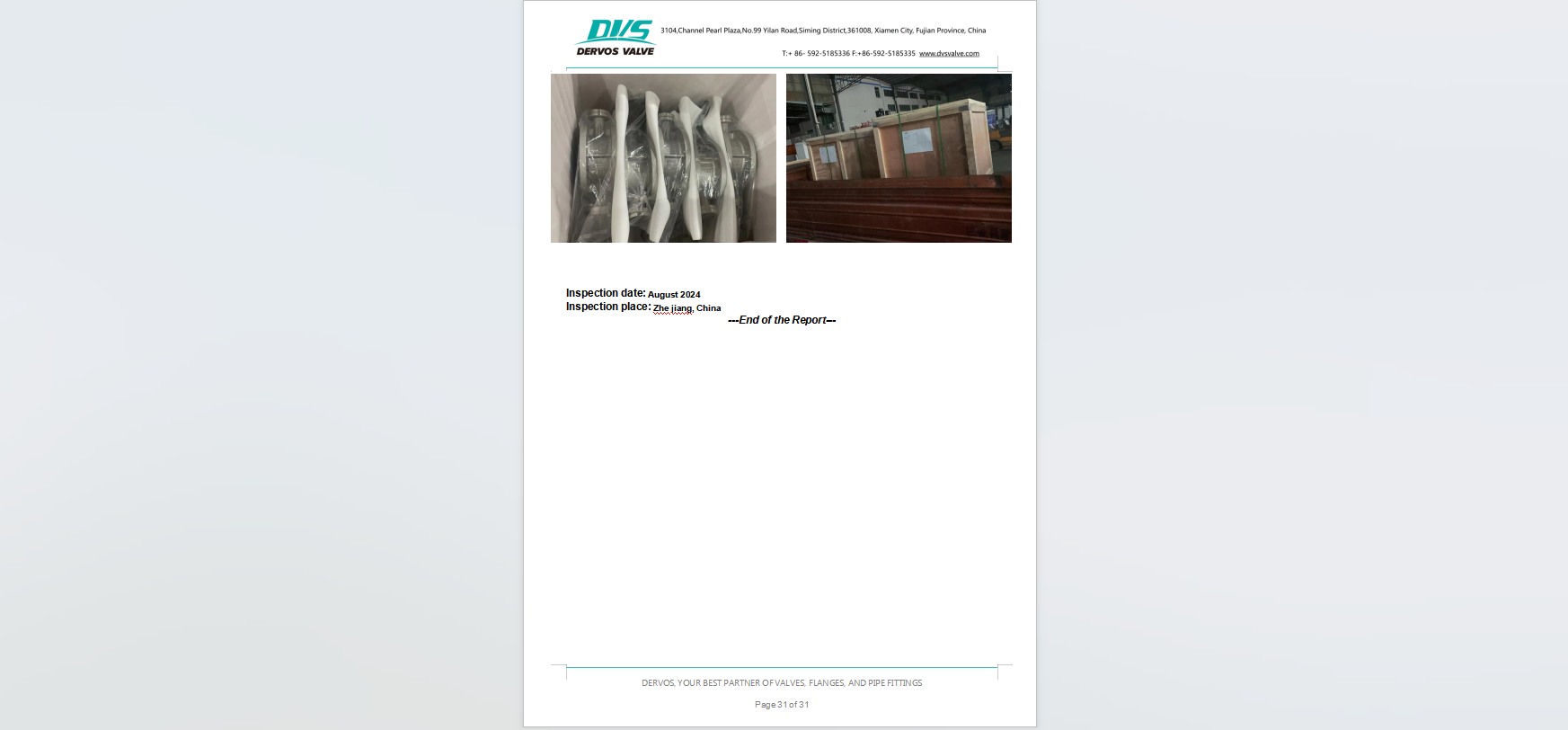

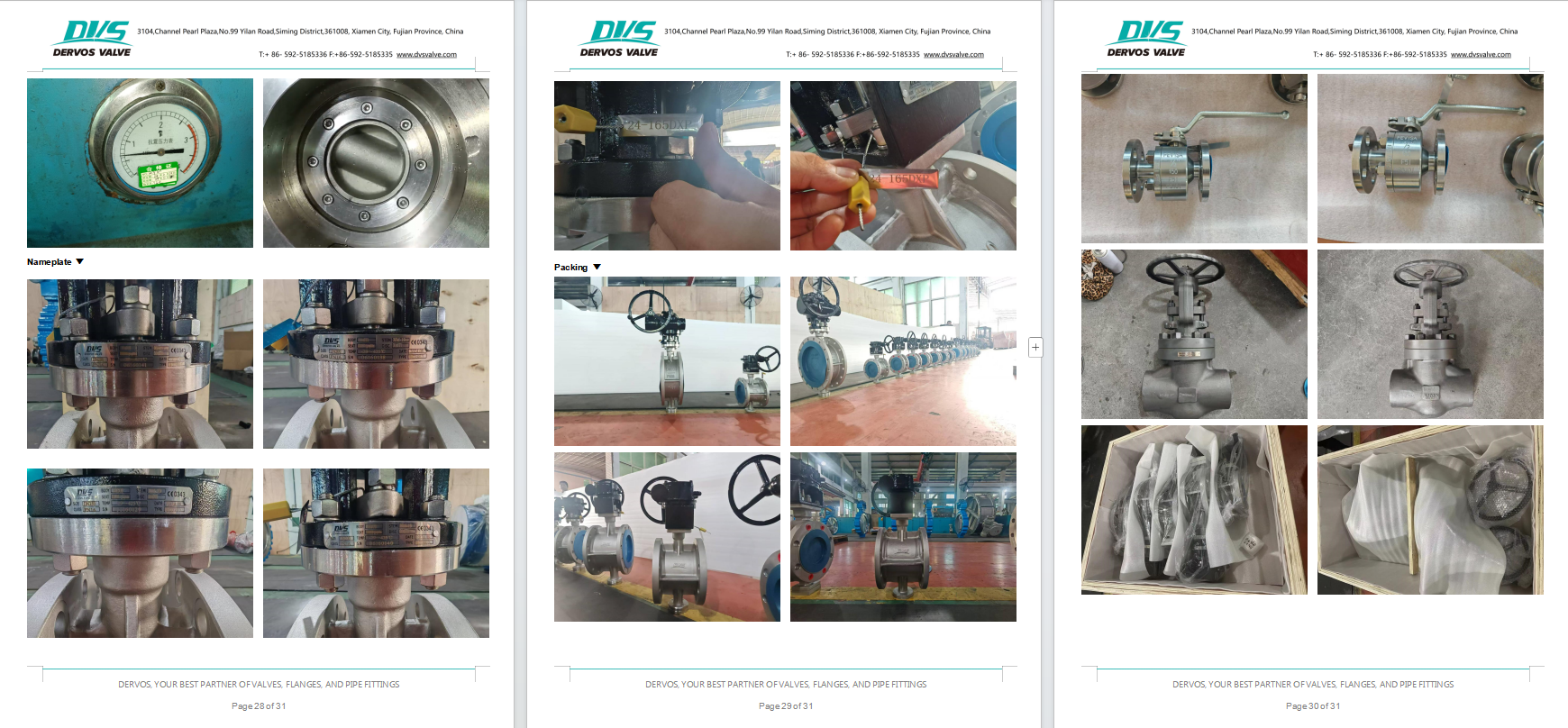

Inspection Report
