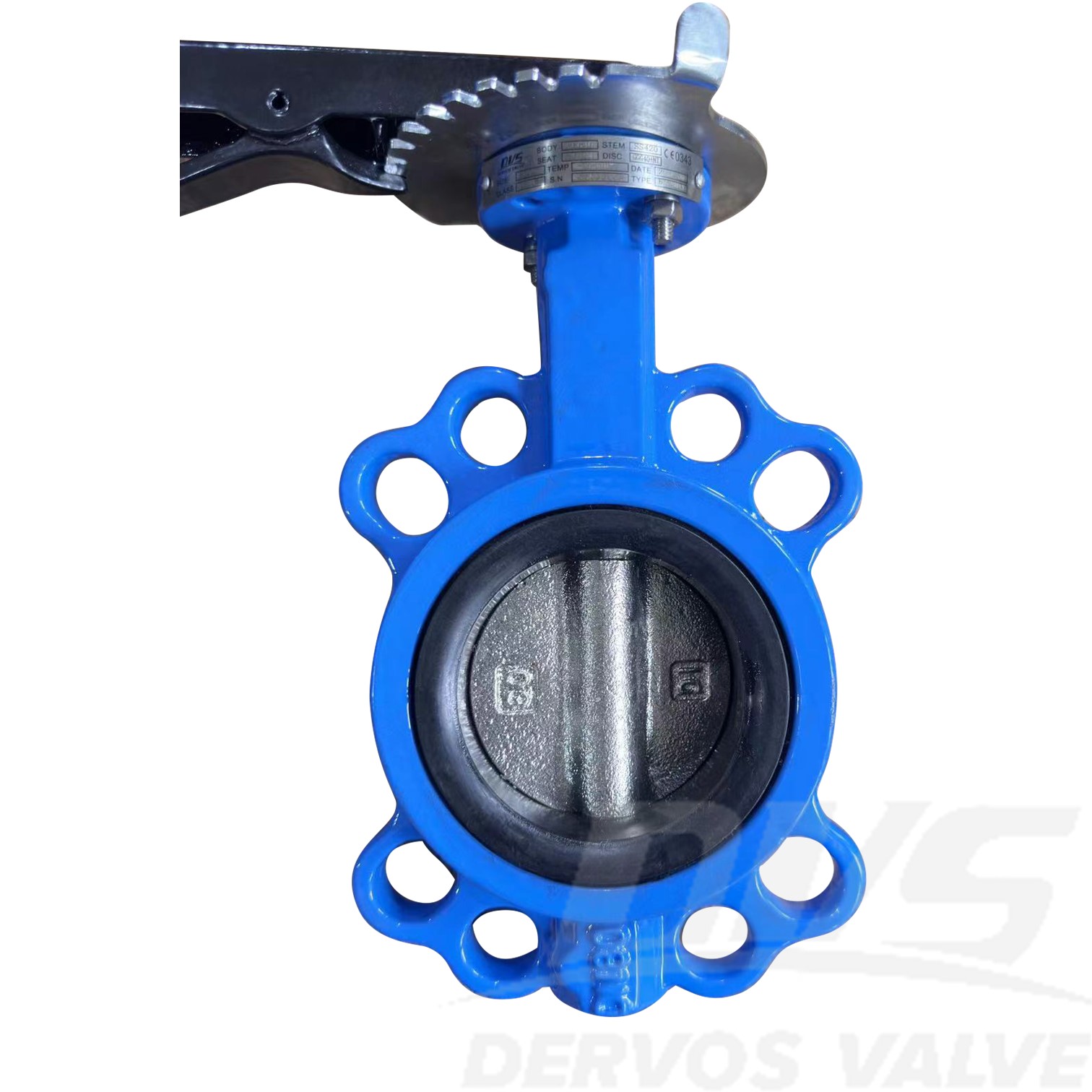

DN80 PN16 GGG40 Concentric Butterfly Valve API609
Key Specifications / Features
Model No.: Hits: 0
DN80 PN16 Concentric Butterfly Valve is made according to API609 standard. The valve body is made of GGG40. It has the structural characteristics of Concentric. Its connection mode is Wafer. And it has lever operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Concentric Butterfly Valve |
| Size | DN80 |
| Pressure | PN16 |
| Connection | Wafer |
| Operation | Lever |
| Body Material | GGG40 |
| Design Norm | API609 |
| Face to face | EN558-1 |
| End Flange | EN1092/ ASME B16.5 |
| Test & Inspection Code | EN12266 |
| Temperature | -10 ~ 110°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.GGG40 ductile iron body ensures strong mechanical performance and long service life under PN16 conditions.2.API 609 compliant concentric design provides reliable sealing and smooth flow control in industrial applications.

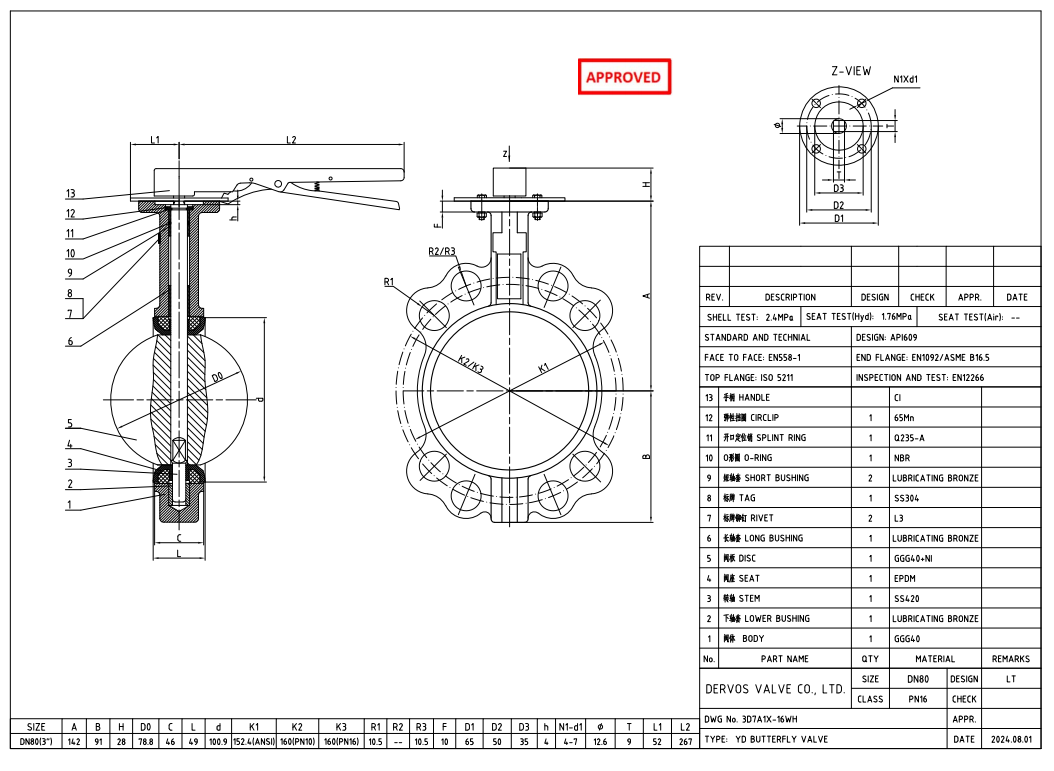

Technical Drawing

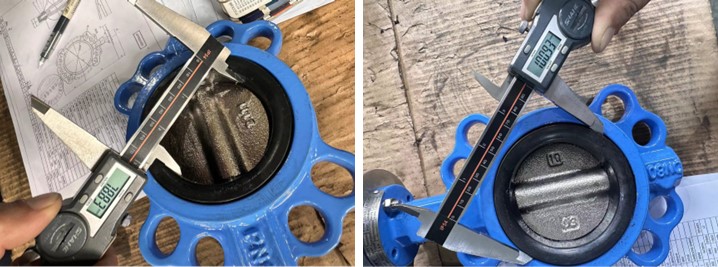

Dimension Checking

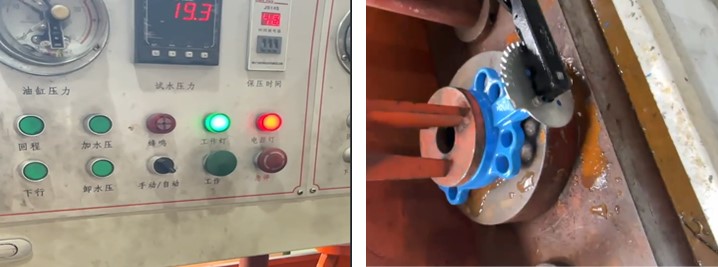

Pressure Testing
Painting
Spectrum

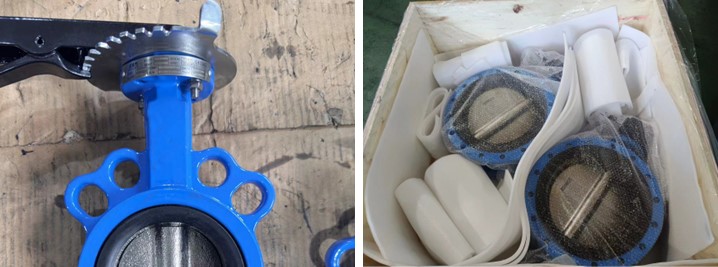

Nameplate & Packing
