Double Offset Butterfly Valve 6" 150LB WCB Lug Type
Key Specifications / Features
Model No.: Hits: 0
6" 150LB Double Offset Butterfly Valve is made according to ASME B16.5 standard. The valve body is made of WCB. It has the structural characteristics of Double Offset, High Performance. Its connection mode is Lug Type. And it has Gear Operated operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Triple Offset Butterfly Valve 12" 300LB LCC API 609
Detail Information
Product Parameters
| Type | Double Offset Butterfly Valve |
| Size | 6” |
| Pressure | 150LB |
| Connection | Lug Type |
| Operation | Gear Operated |
| Body Material | WCB |
| Design Norm | API 609 |
| Face to face | API 609 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 180°C |
| Applicable Medium | Natural Gas,Gas,Water,Steam, Oil,etc |
Features
1.Double offset disc design reduces seat wear and delivers reliable sealing performance for Class 150 applications.2.WCB lug-type body allows easy installation and supports bidirectional service in various industrial piping systems.

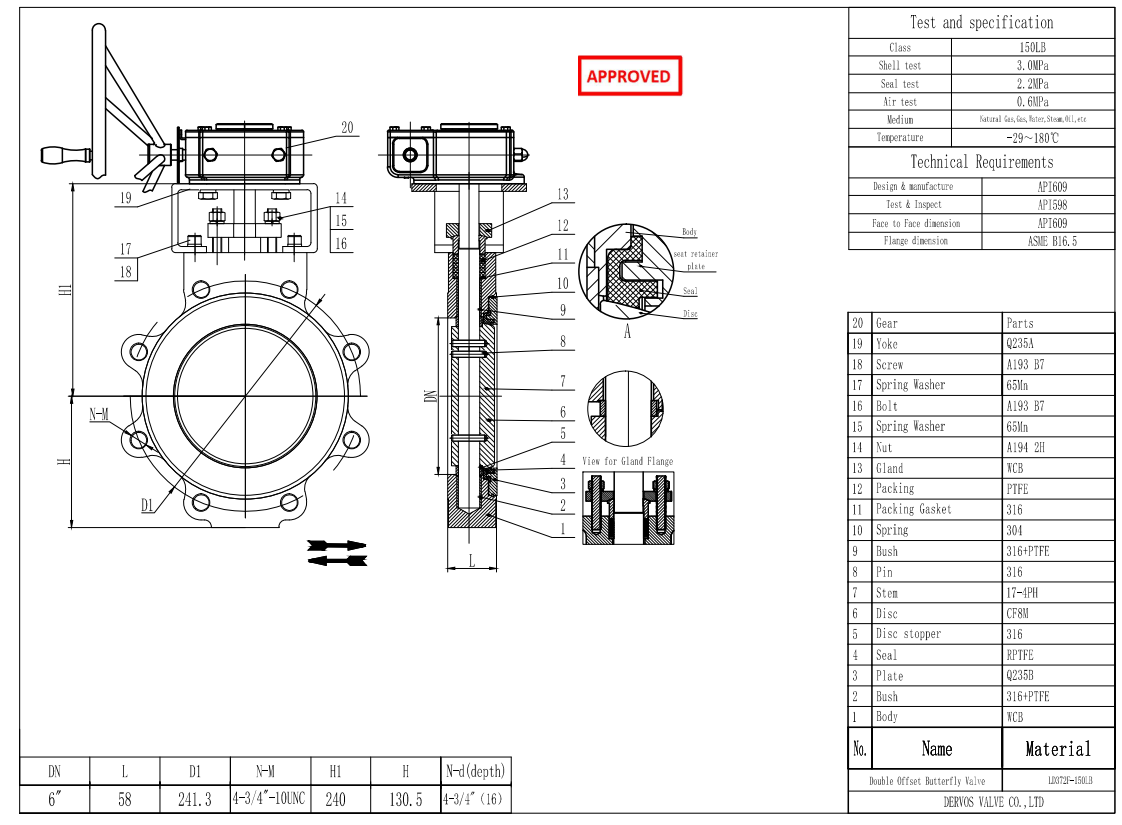

Technical Drawing

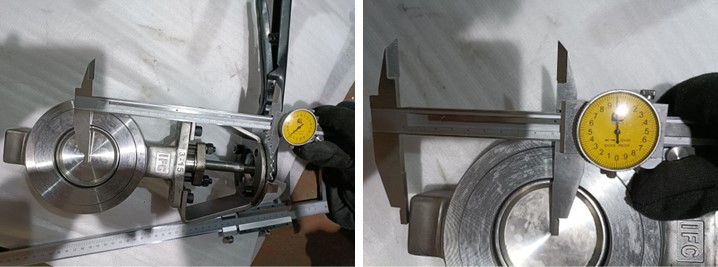

Dimension Checking

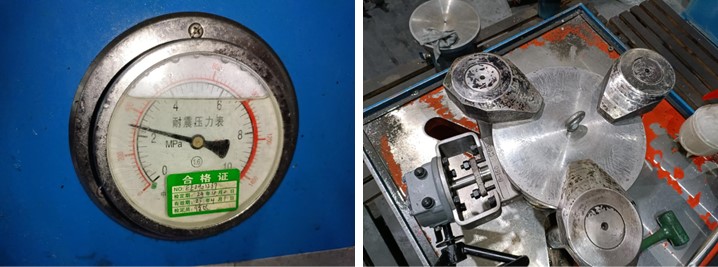

Pressure Testing

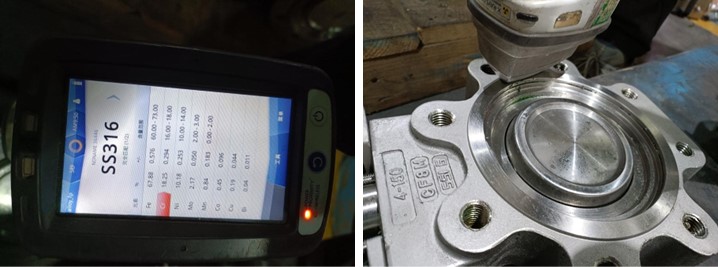

Spectrum

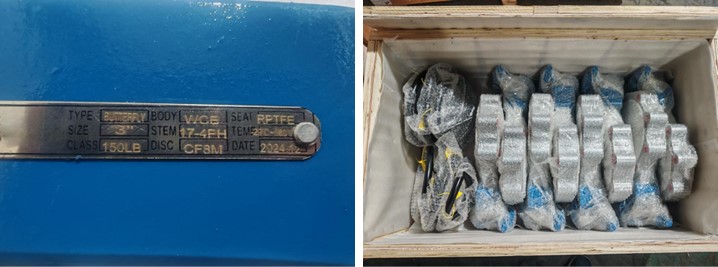

Nameplate & Packing

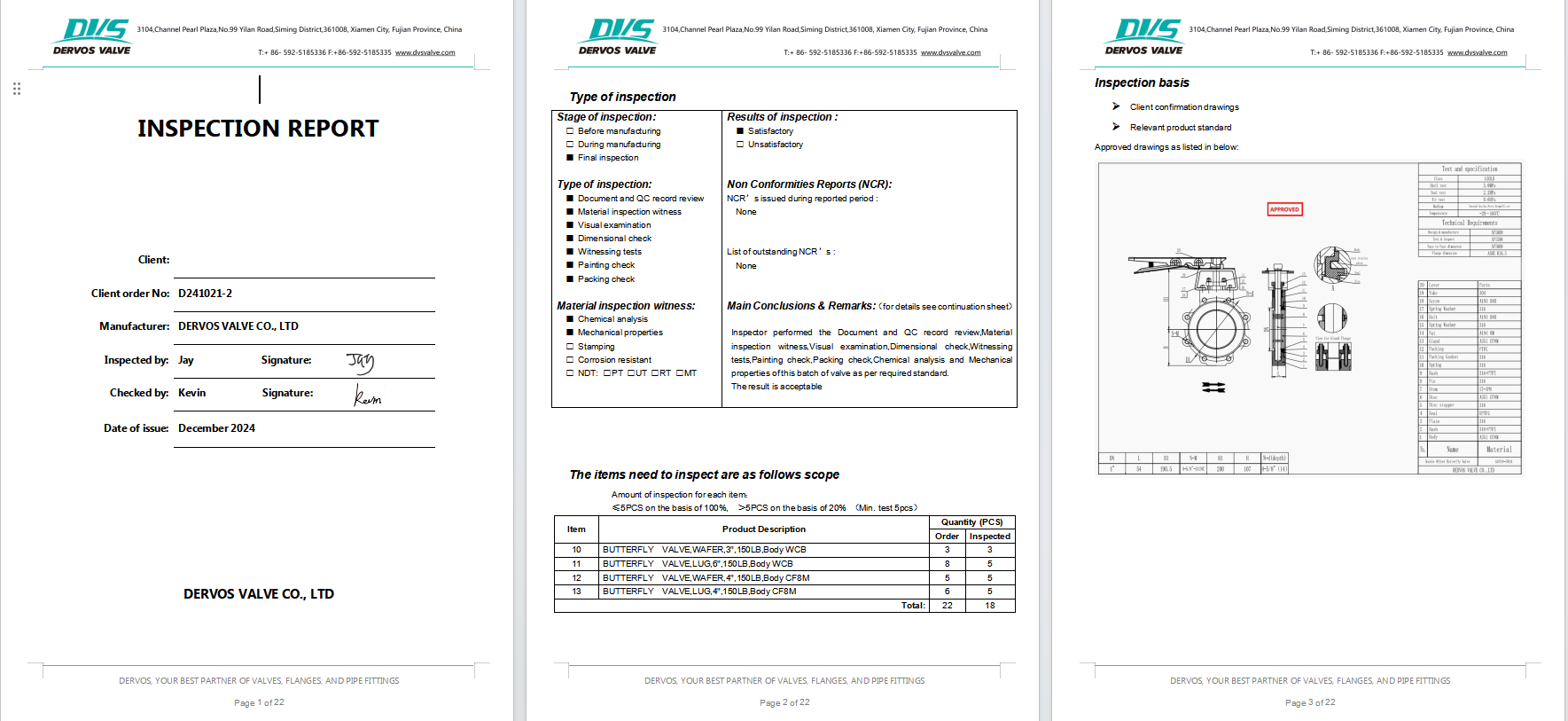

Inspection Report
