Triple Offset Butterfly Valve 12" 300LB LCC API 609
Key Specifications / Features
Model No.: Hits: 0
12" 300LB Triple Offset Butterfly Valve is made according to ASME B16.34 standard. The valve body is made of LCC. It has the structural characteristics of Triple Offset, Multi-layer Metal Seated. Its connection mode is RF. And it has Worm Gear operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Triple Offset Butterfly Valve DN100 PN16 RF WCB EN593
Detail Information
Product Parameters
| Type | Triple Offset Butterfly Valve |
| Size | 12” |
| Pressure | 300LB |
| Connection | Double Flanged |
| Operation | Worm Gear |
| Body Material | ASTM A352 LCC+316 |
| Design Norm | API 609 |
| Face to face | API 609 |
| End Flange Connection | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -46 ~ 125°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. The triple offset metal-seated design delivers zero-leakage shutoff performance under high-pressure and high-temperature operating conditions.2. Constructed with an LCC body and manufactured to API 609 standard, the valve provides excellent reliability for low-temperature and critical process applications.

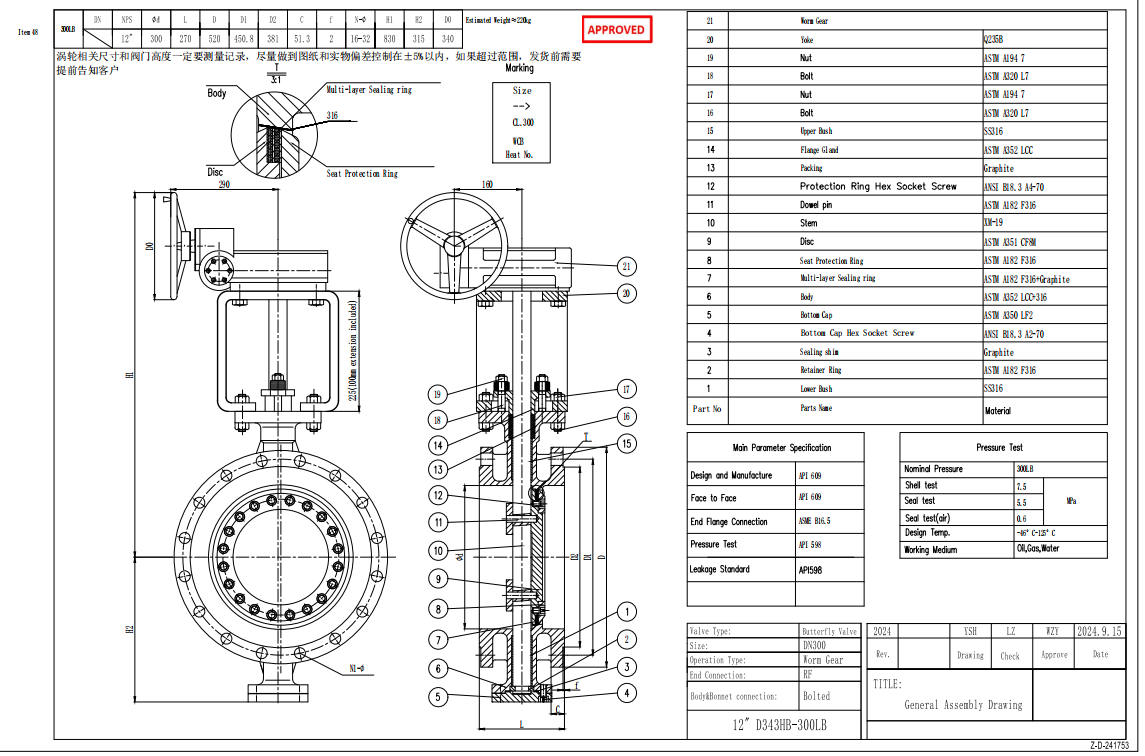

Technical Drawing

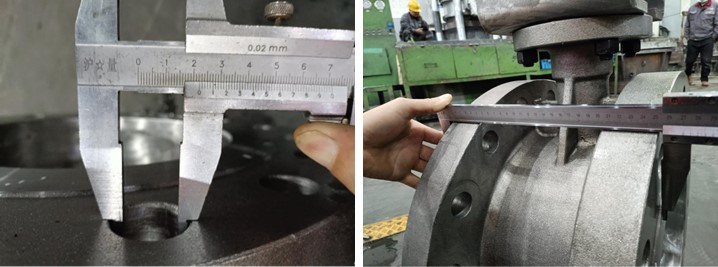

Dimension Checking

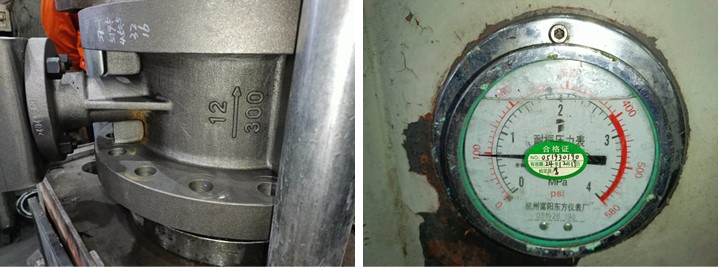

Pressure Testing

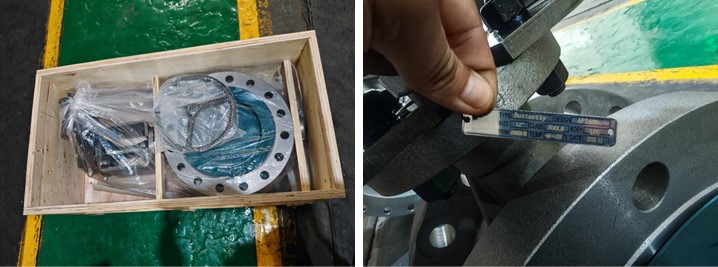

Nameplate & Packing

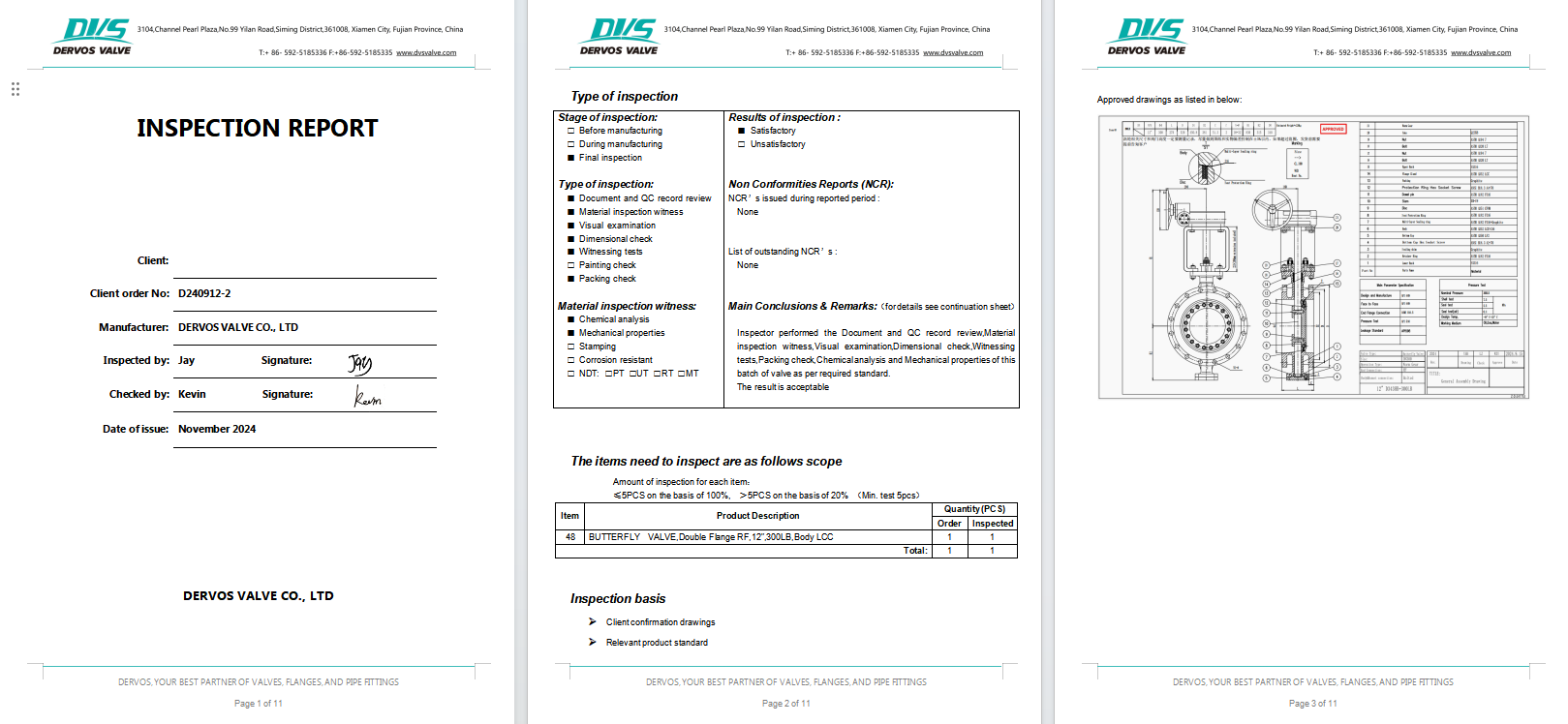

Inspection Report
