Forged Steel Floating Ball Valve 1-1/2" 600LB F316L RF
Key Specifications / Features
Model No.: Hits: 0
1-1/2" 600LB Forged Steel Floating Ball Valve is made according to API6D standard. The valve body is made of ASTM A182 F316L. It has the structural characteristics of Full Bore, Floating Ball, Fire-Safe & Anti-Static, Blowout-Proof Stem. Its connection mode is RF. And it has handle operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Forged Steel Floating Ball Valve |
| Size | 1-1/2"’ |
| Pressure | 600LB |
| Connection | RF |
| Operation | Handle |
| Body Material | ASTM A182 F316L |
| Design Norm | API 6D |
| Face to face | ASME B 16.10 |
| End connection | RF |
| Test & Inspection Code | API 6D/API 598 |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Forged from F316L stainless steel, providing excellent corrosion resistance and durability for 600LB pressure applications.2.Floating ball design with RF flange connection ensures tight sealing and reliable performance in process pipelines.

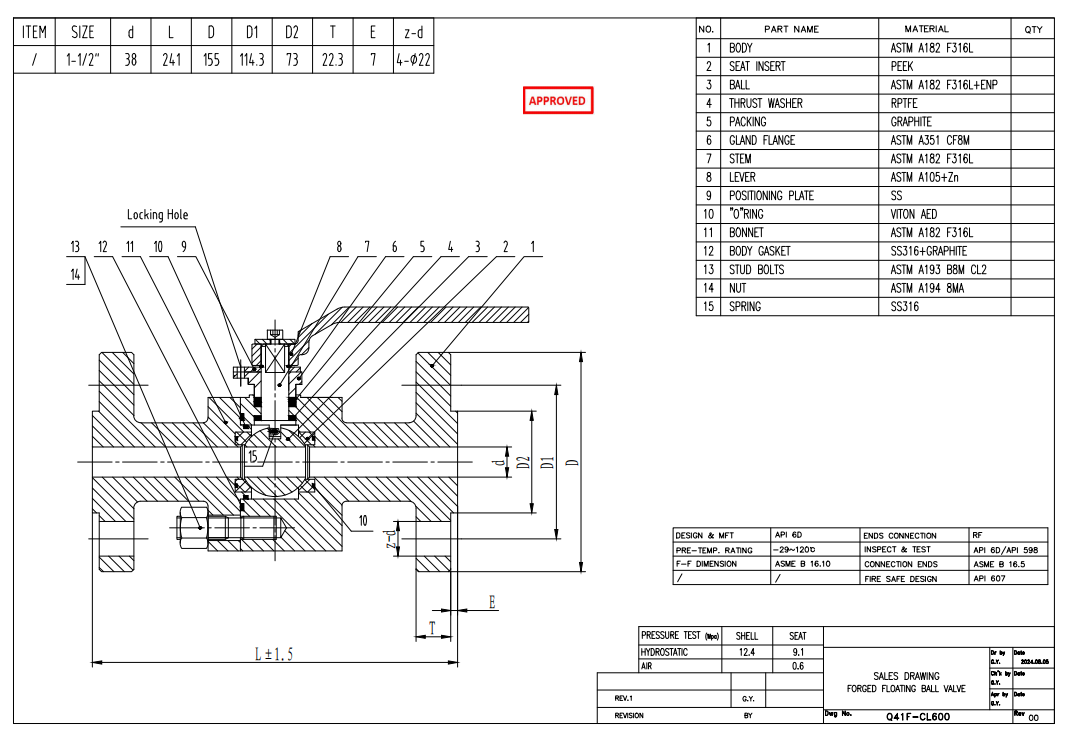

Technical Drawing

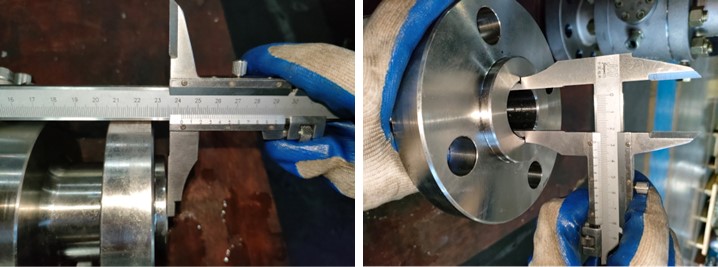

Dimension Checking

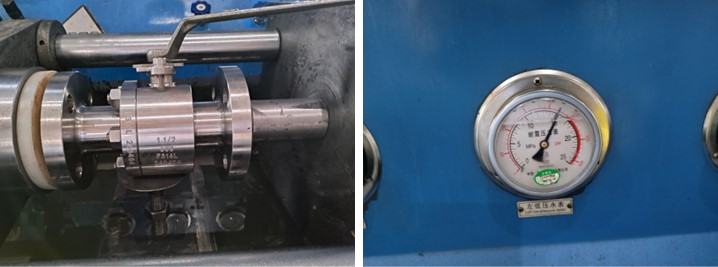

Pressure Testing
Painting

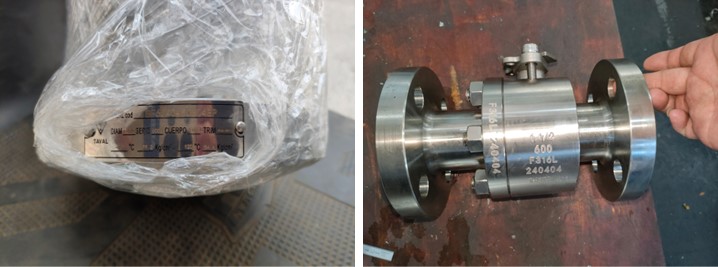

Nameplate & Packing
