Forged Steel Swing Check Valve 1" 800LB A105N SW API602
Key Specifications / Features
Model No.: Hits: 0
1" 800LB Swing Check Valve is made according to API602 standard. The valve body is made of A105N. It has the structural characteristics of pressure self sealing, elastic gate and structural length of 127mm. Its connection mode is SW.
Request a quote
Tags:
Next: Return to List
Previous: Cast Steel Y Type Strainer 4" 150LB WCB RF ASME B16.34
Detail Information
Product Parameters
| Type | Swing Check Valve |
| Size | 1” |
| Pressure | 800LB |
| Connection | SW |
| Body Material | ASTM A105N |
| Design Norm | API 602 |
| Face to face | Customer Requirement |
| Flange dimension | ANSI B16.11 |
| Test & Inspection Code | API STD.598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil etc |
Features
1. Forged steel swing check valve manufactured from A105N material, providing high strength and reliable backflow prevention performance.2. 1" 800LB pressure-rated design with SW ends, suitable for high-pressure oil, gas, steam, and industrial pipeline systems.

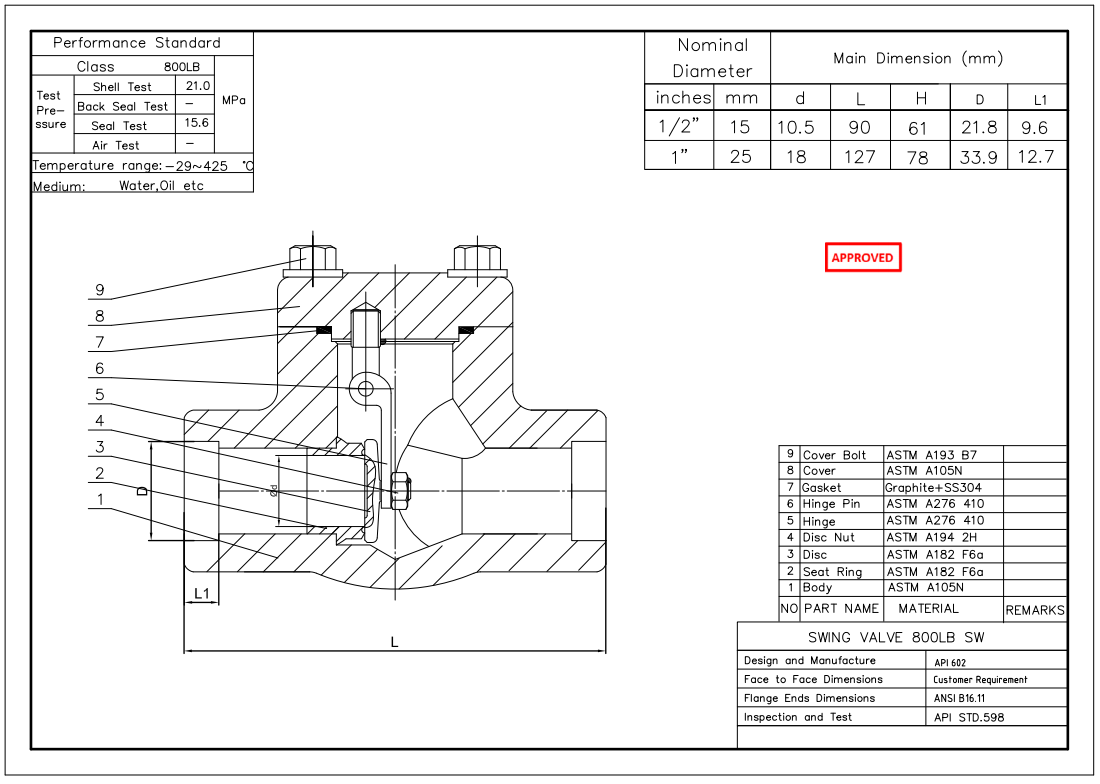

Technical Drawing

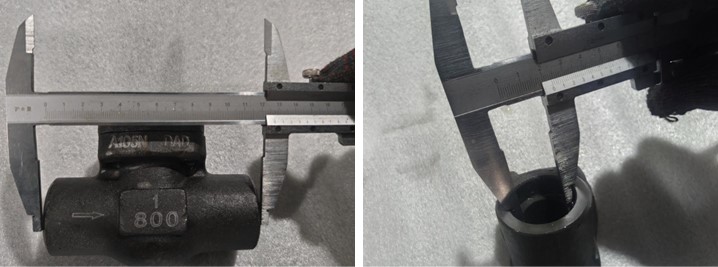

Dimension Checking

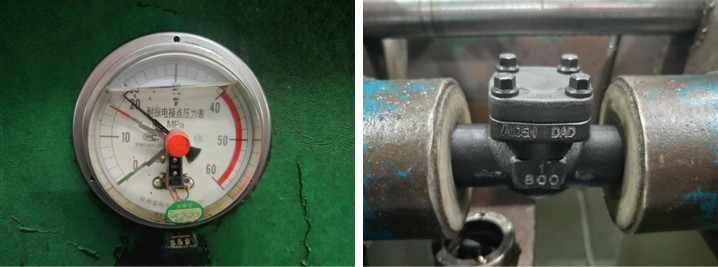

Pressure Testing

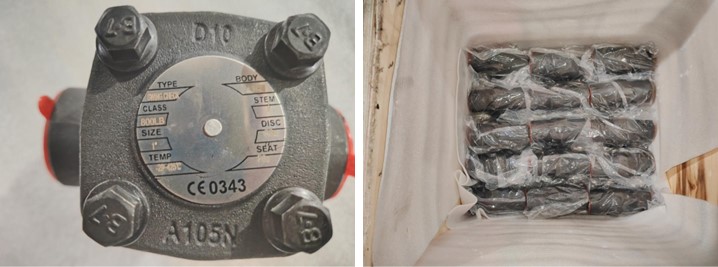

Nameplate & Packing

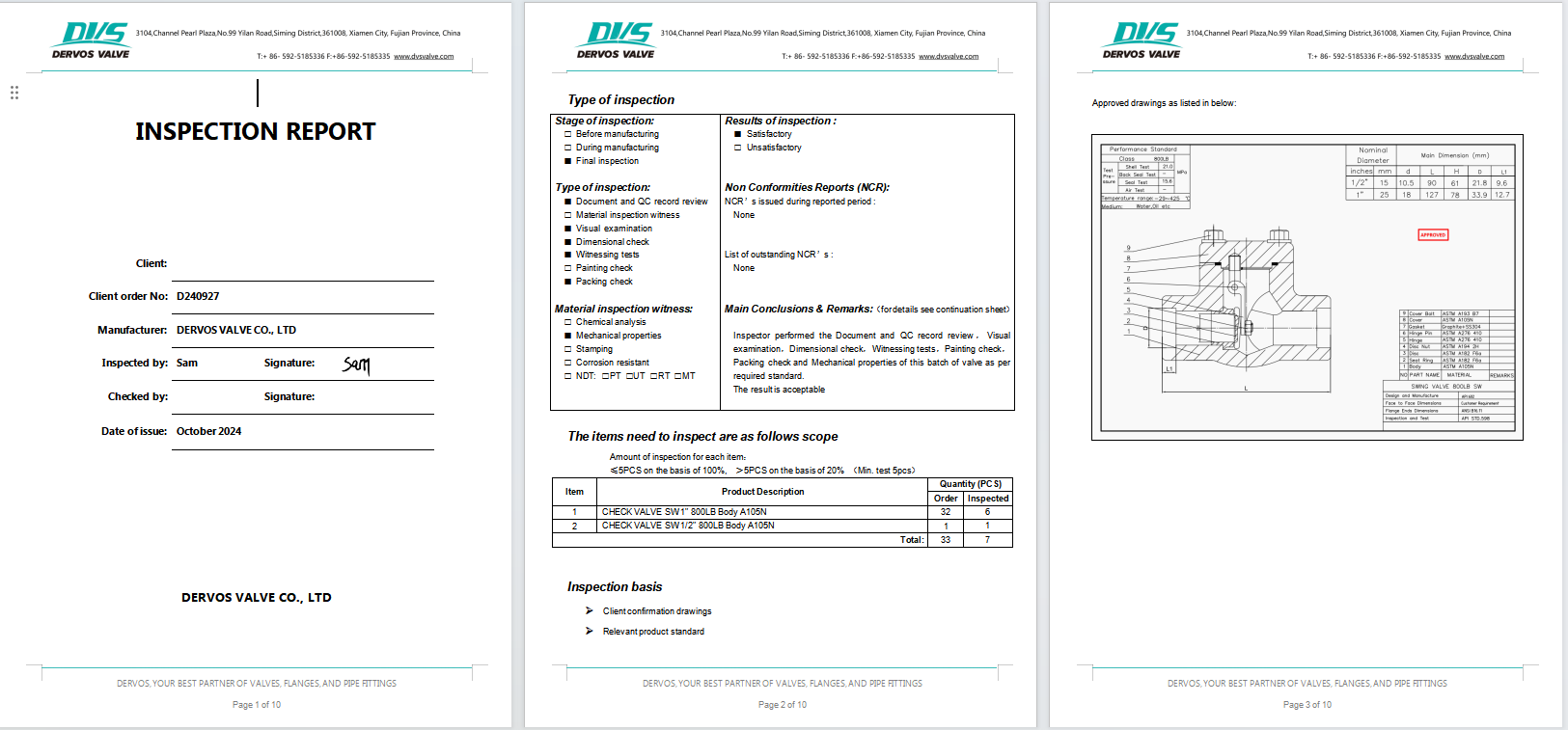

Inspection Report
