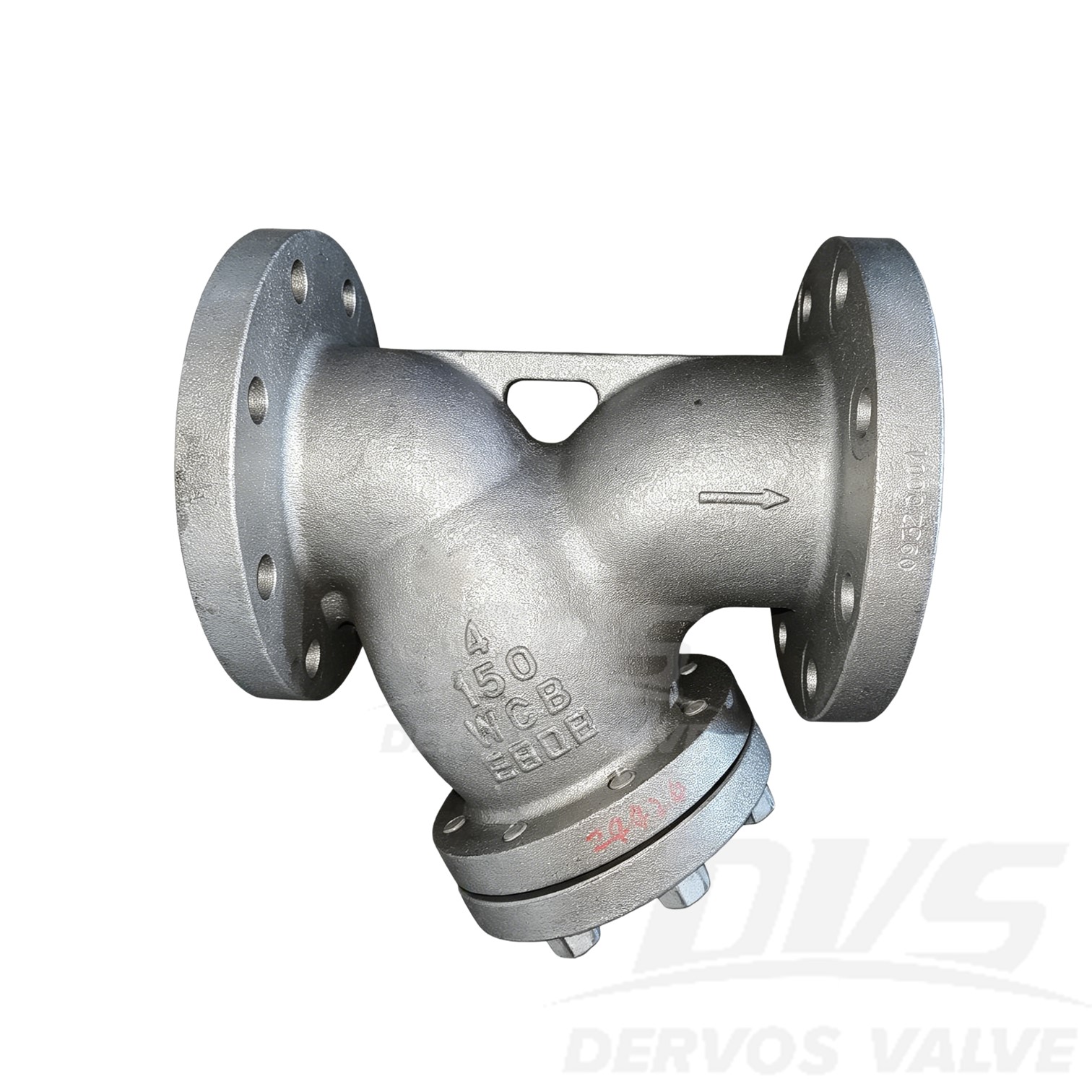

Cast Steel Y Type Strainer 4" 150LB WCB RF ASME B16.34
Key Specifications / Features
Model No.: Hits: 0
4" 150LB Y Type Strainer is made according to ASME B16.34 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of Y Type. Its connection mode is RF.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Y Type Strainer |
| Size | 4” |
| Pressure | 150LB |
| Connection | RF |
| Body Material | ASTM A216 WCB |
| Design Norm | ASME B16.34 |
| Face to face | ASME B16.5 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Cast steel Y type strainer designed in accordance with ASME B16.34 for efficient removal of solid particles and pipeline protection.2. WCB carbon steel body with 4" 150LB RF flanged ends, suitable for oil, gas, steam, and general industrial service applications.

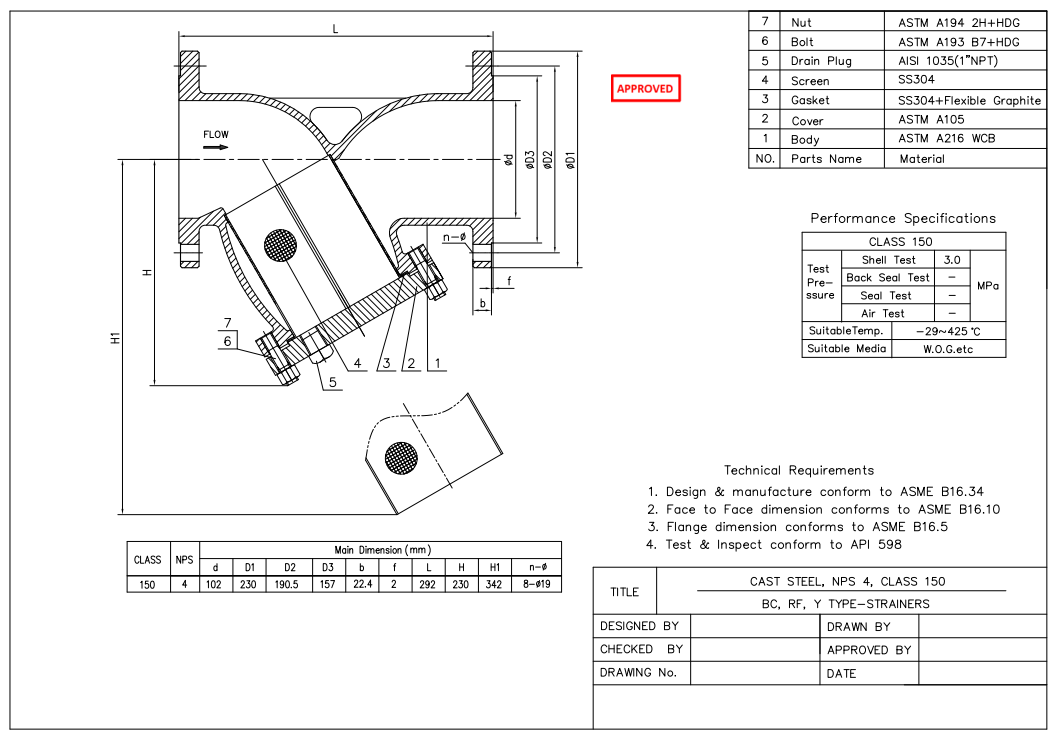

Technical Drawing

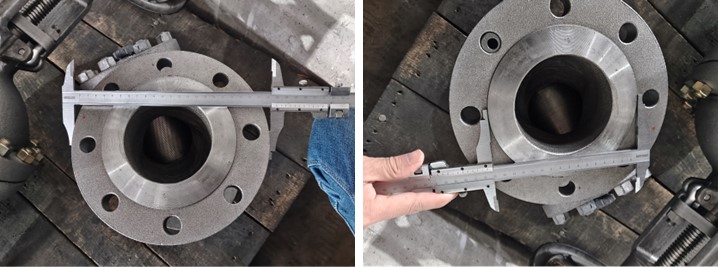

Dimension Checking

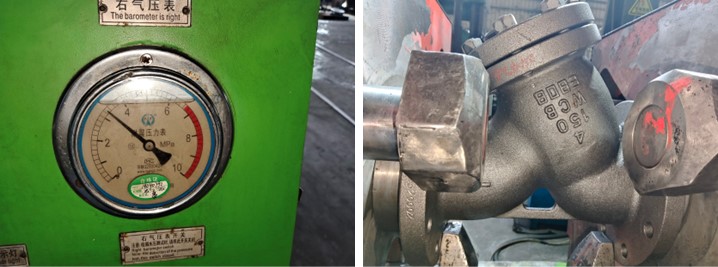

Pressure Testing

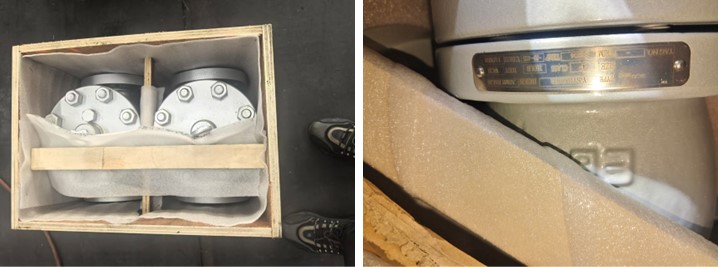

Nameplate & Packing

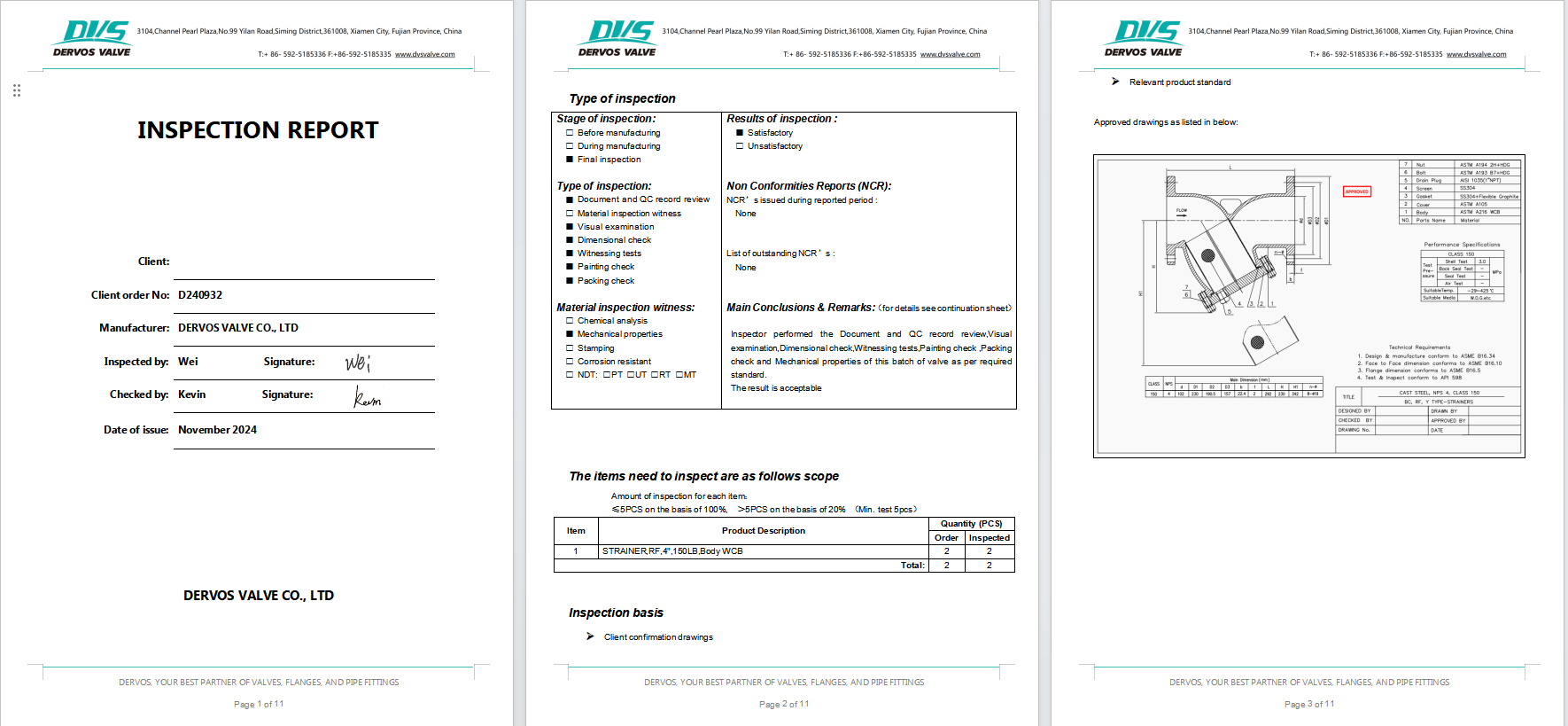

Inspection Report
