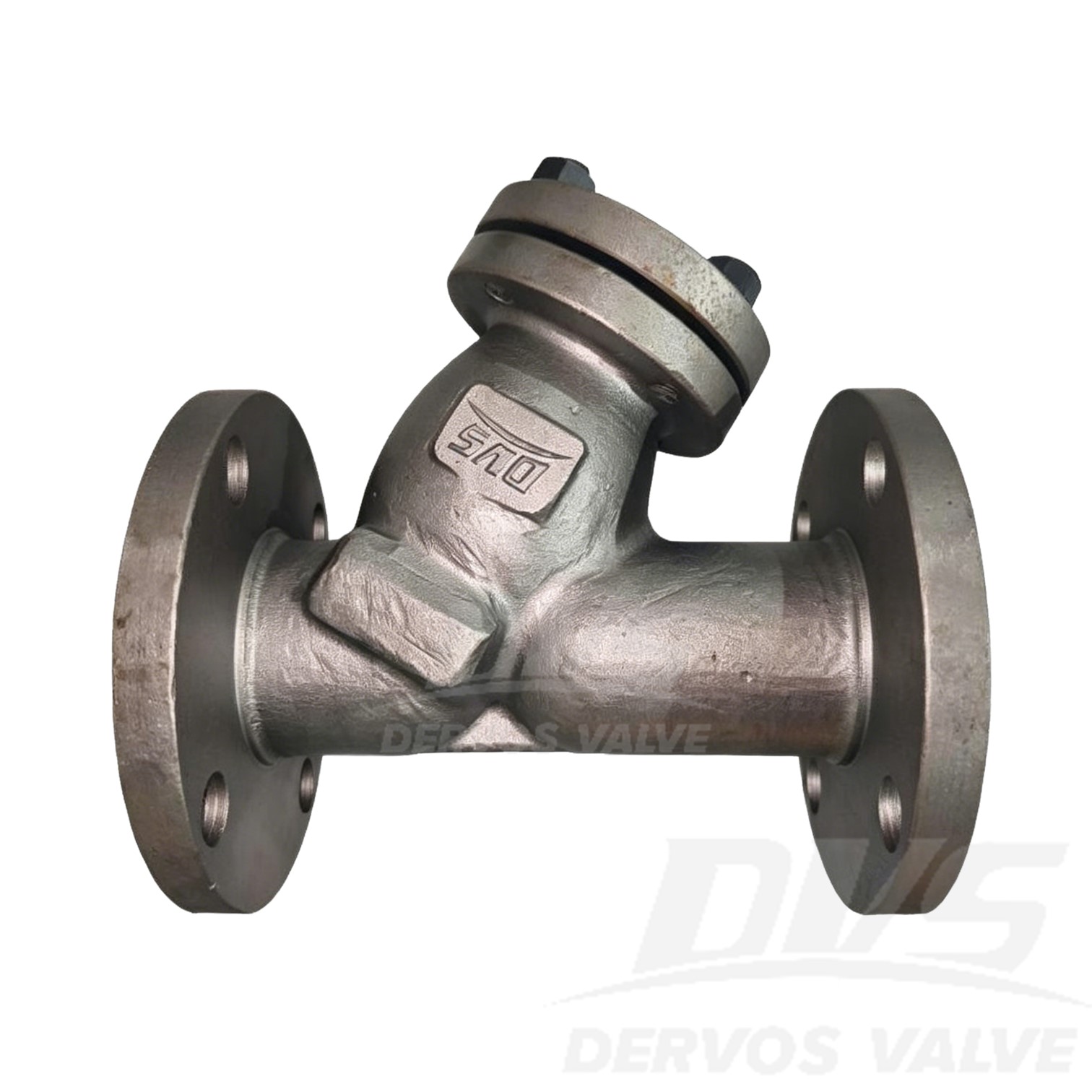

Cast Steel Y Type Strainer 2" 150LB RF ASME B16.34 LCB RF
Key Specifications / Features
Model No.: Hits: 0
2" 150LB Y Type Strainer is made according to ASME B16.34 standard. The valve body is made of LCB. It has the structural characteristics of Y Type, NPT Plug. Its connection mode is RF.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Y Type Strainer |
| Size | 2” |
| Pressure | 150LB |
| Connection | RF |
| Body Material | ASTM A352 LCB |
| Design Norm | ASME B16.34 |
| Face to face | MFG’S STD |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -46 ~ 345°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Cast steel Y type strainer manufactured to ASME B16.34 standard, designed to effectively filter debris and protect pipeline equipment.2. LCB low-temperature carbon steel body with 2" 150LB RF flanged ends, suitable for low-temperature and general industrial applications.

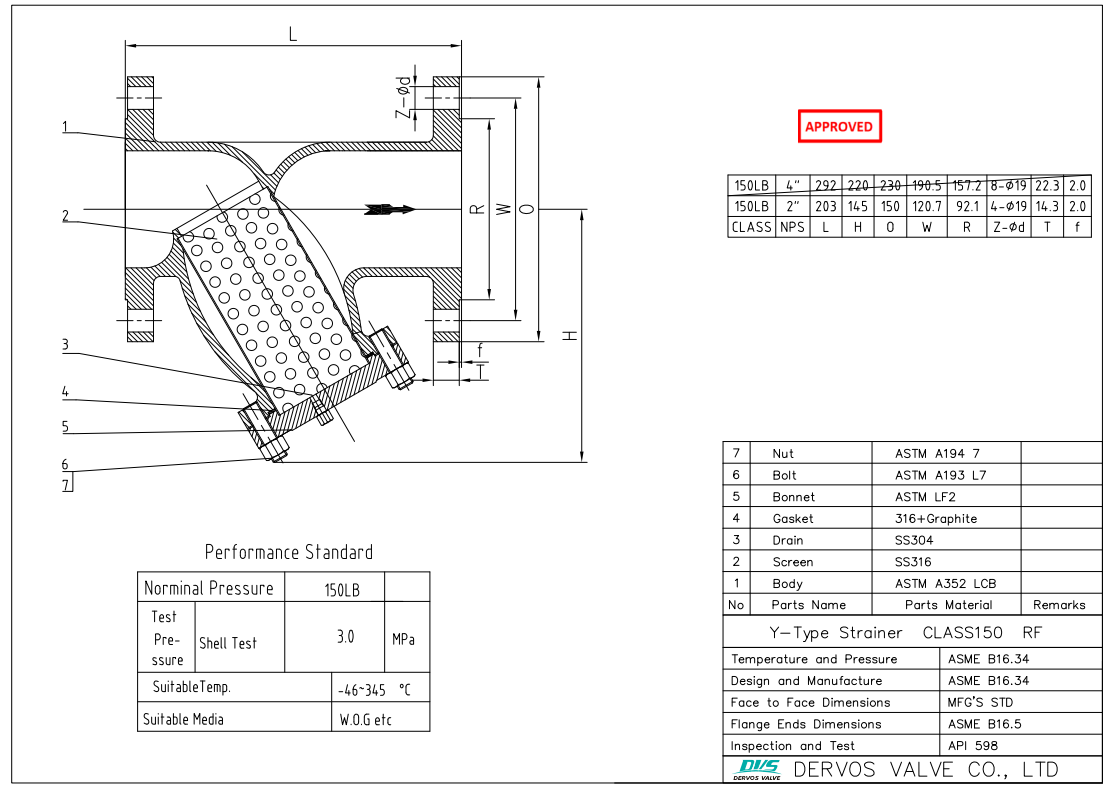

Technical Drawing

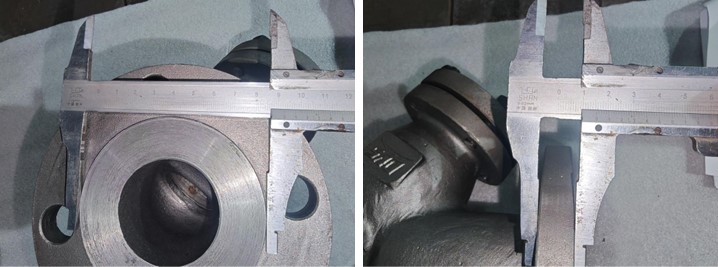

Dimension Checking

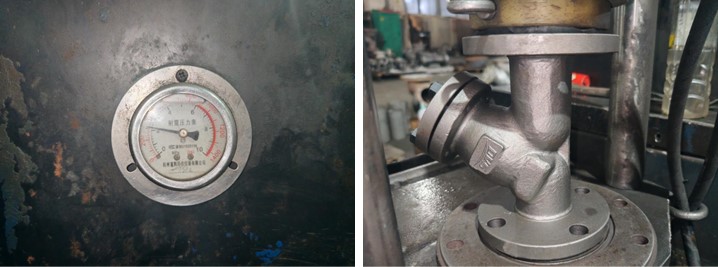

Pressure Testing

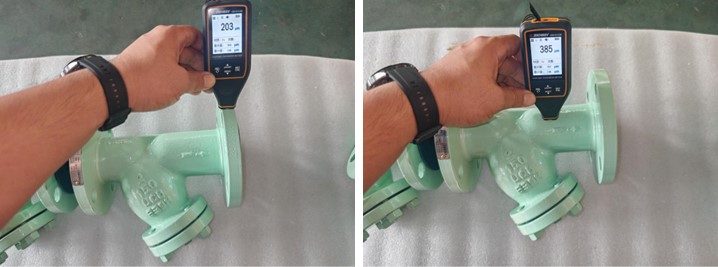

Painting

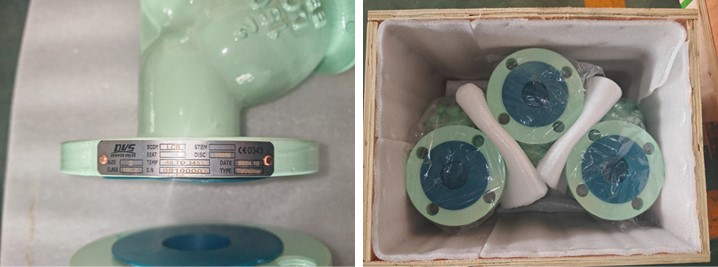

Nameplate & Packing

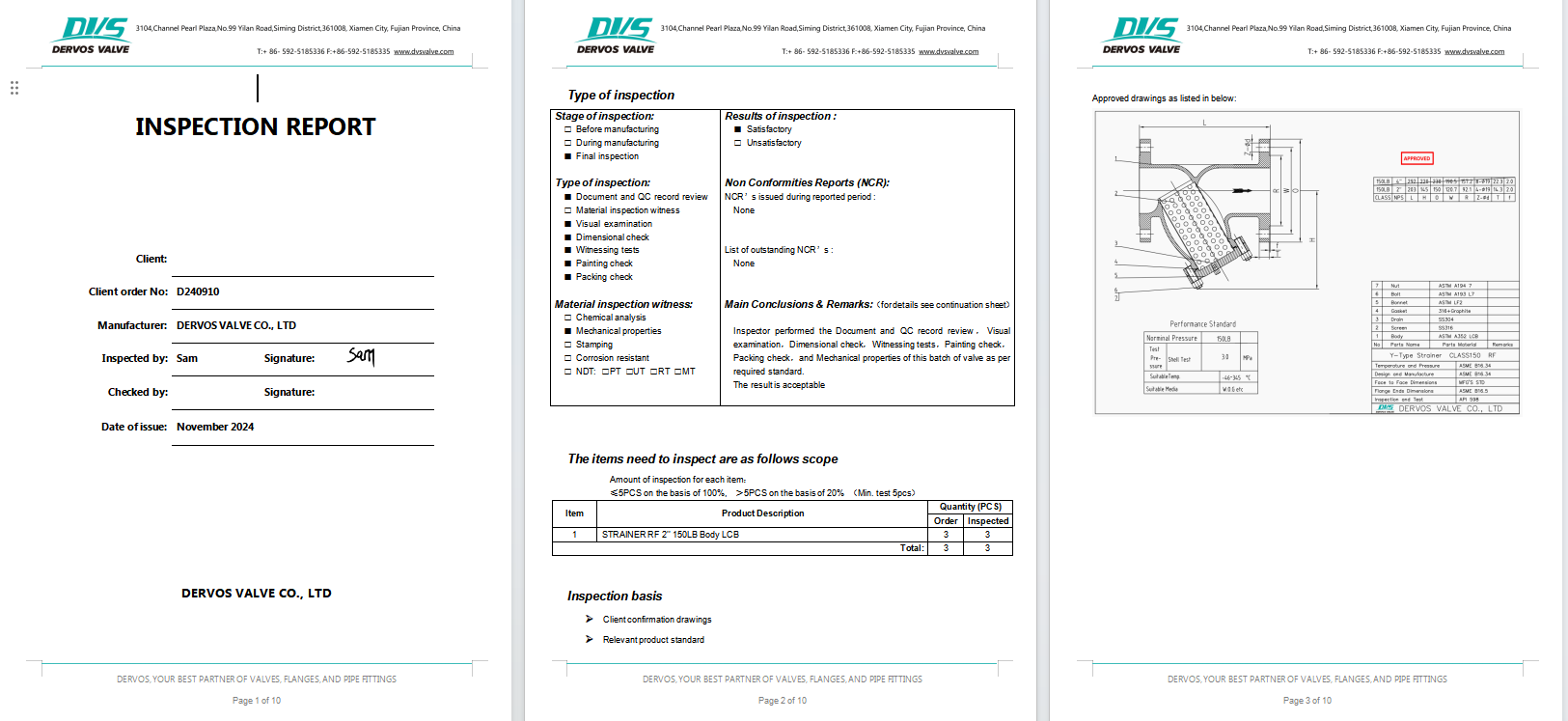

Inspection Report
