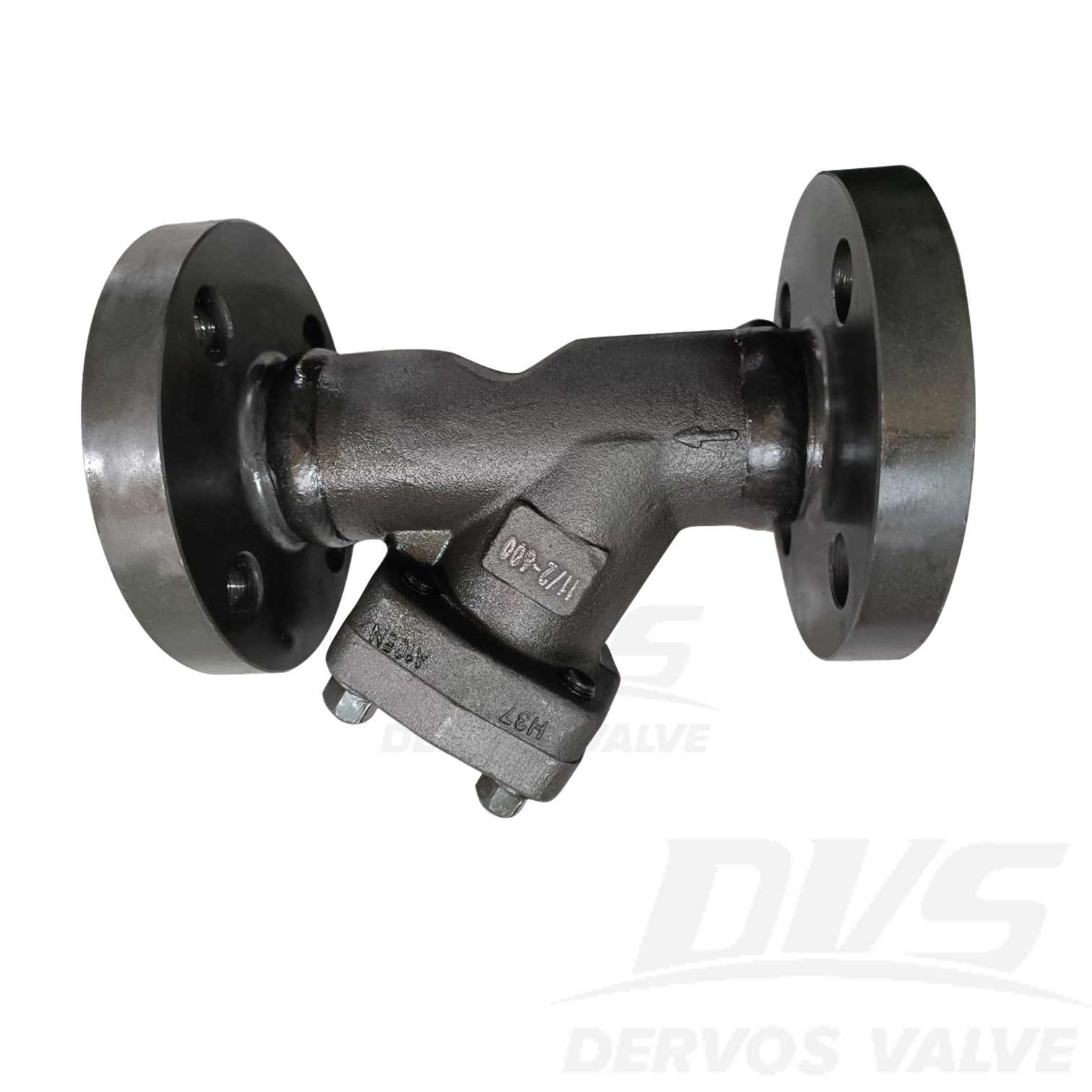

Y Type Strainer 1-1/2" 600LB A105N ASME B16.34
Key Specifications / Features
Model No.: Hits: 0
1-1/2" 600LB strainer is made according to ASME B16.34 standard. The valve body is made of ASTM A105N. It has the structural characteristics of Y-Type, Bolted Body-Bonnet. Its connection mode is RF.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Y Type Strainer |
| Size | 1-1/2” |
| Pressure | 600LB |
| Connection | RF |
| Operation | G.O |
| Body Material | A516 Gr70 |
| Design Norm | ASME/B16. 34 |
| Face to face | ASME/B16. 10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Forged A105N steel body provides excellent strength and durability for high-pressure pipeline systems.2.Y-type structure efficiently filters debris while maintaining stable flow and protecting downstream equipment.

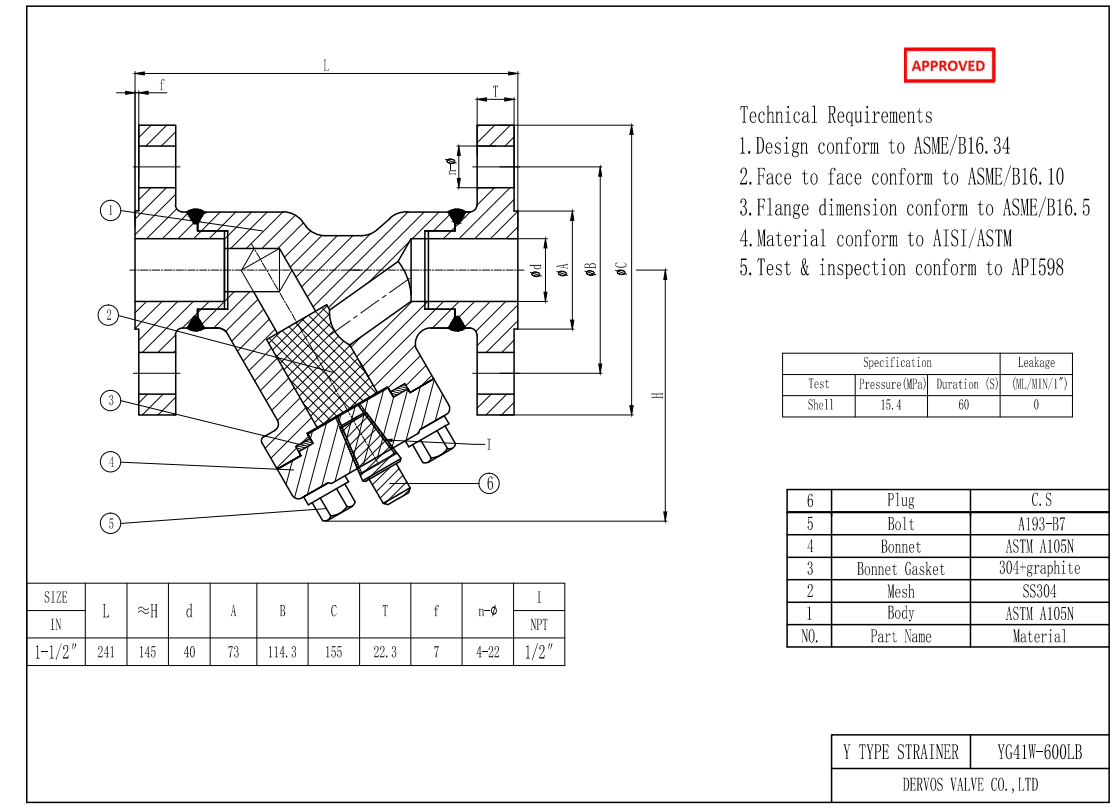

Technical Drawing

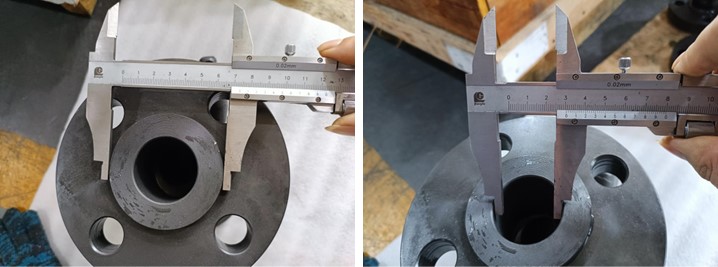

Dimension Checking

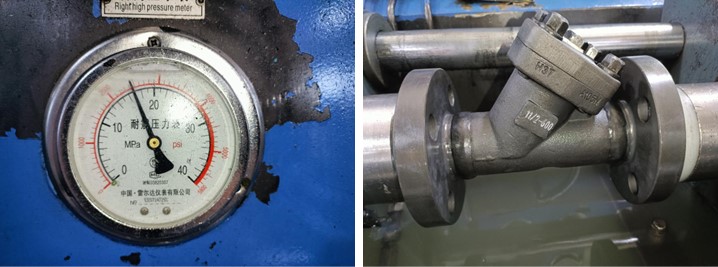

Pressure Testing

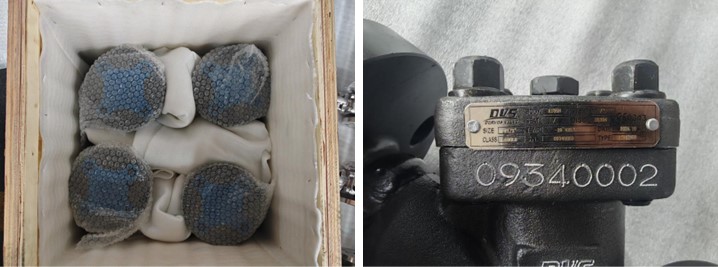

Nameplate & Packing

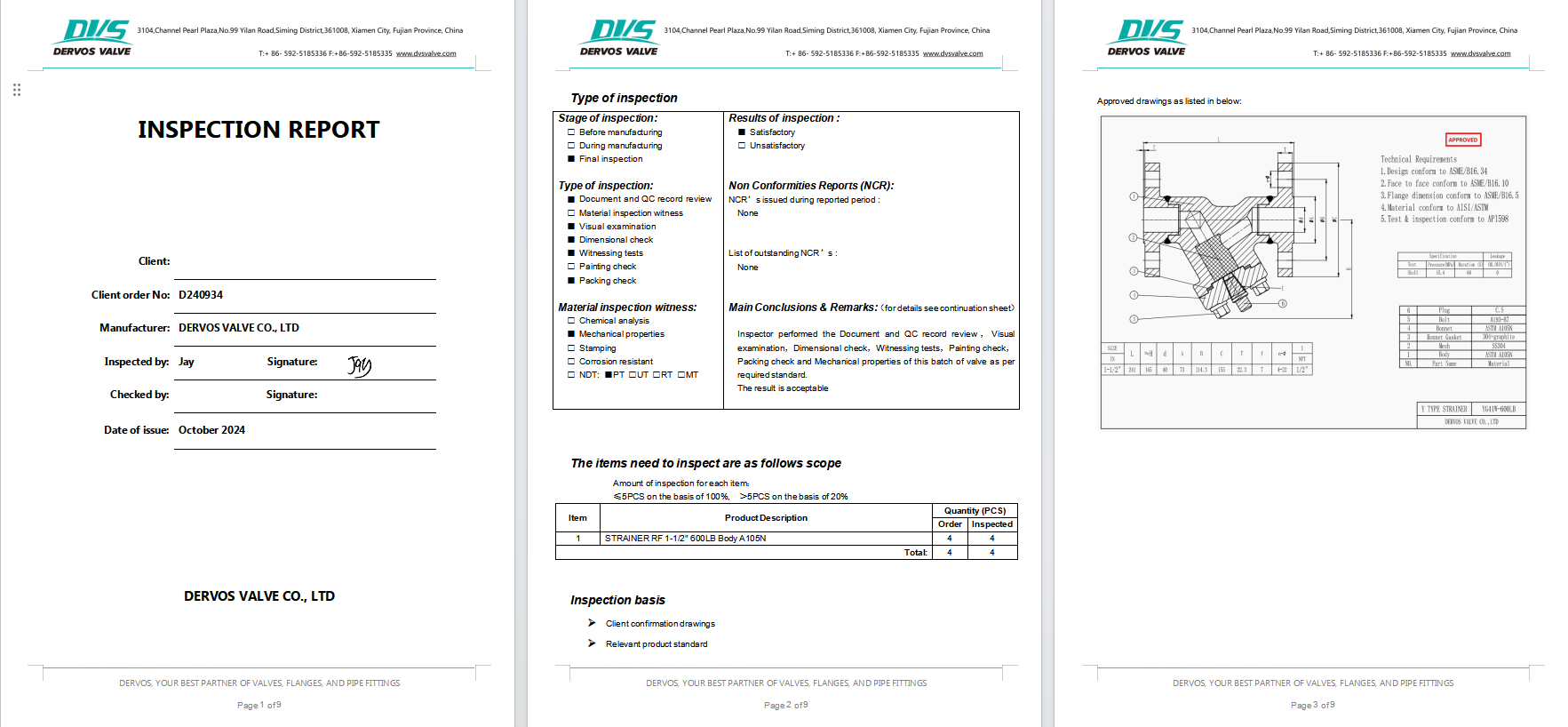

Inspection Report
