Where can ball valves be used? From HVAC Systems to Oil & Gas Pipelines

Ball valves are a type of valve known for their simple structure, reliable sealing, and quick shut-off/on capabilities. Thanks to their high pressure and temperature resistance as well as ease of maintenance, ball valves have become an indispensable component across a wide range of industrial fluid control systems. This article will delve into the typical application scenarios of ball valves across various industries and highlight key selection considerations under different operating conditions — helping you better understand the value and versatility of this essential control element.

1. HVAC Systems: Balancing Regulation and Control

In HVAC (Heating, Ventilation, and Air Conditioning) systems, ball valves are commonly used for quick shut-off and zonal isolation of pipeline fluids. Compared to traditional gate or globe valves, ball valves operate with a simple 90° turn, enabling rapid response, which supports energy efficiency and precise system control. HVAC systems often involve switching between hot and cold water, requiring high sealing performance from the valves. To meet this demand, stainless steel ball valves or those with PTFE seals are preferred, as they offer excellent leak prevention, corrosion resistance, and extended service life.

2. Water Treatment and Municipal Systems: Corrosion Resistance Meets High Flow Capacity

In water treatment and municipal supply systems, ball valves are widely used to control the flow of clean water, wastewater, or recycled water. Especially in wastewater treatment plants, where the medium often contains solids and debris, full port ball valves are ideal for minimizing flow resistance and reducing the risk of clogging. For underground installations or locations where regular maintenance is difficult, PE-coated ball valves or motorized ball valves with electric actuators are commonly used. These options enable remote control and significantly improve system efficiency and reliability.

3. Oil and Gas Industry: Safety Comes First

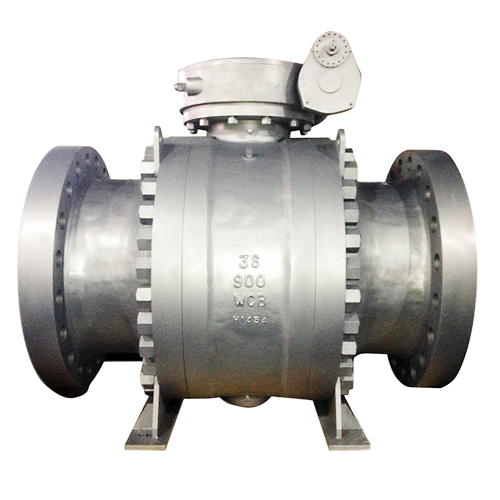

Ball valves are extensively used in oil and gas pipeline systems, especially at critical points such as wellheads, long-distance pipelines, and booster pump stations. These applications involve high pressure, high temperature, and flammable media, which demand exceptional performance in both material selection and sealing reliability. Common types of ball valves used in the oil and gas industry include: - Trunnion Ball Valves: Ideal for high-pressure, large-diameter systems. They require lower operating torque and provide enhanced sealing stability. - Anti-Static Ball Valves: Designed to prevent static sparks during operation, ensuring safety in explosive gas environments. - Fire-Safe Ball Valves: Engineered to maintain sealing capability even under fire conditions, offering critical protection for oil and gas infrastructure.

4. Chemical Industry: Corrosion Resistance is Key

In the chemical industry, fluid media are often complex and may be highly corrosive, toxic, or high-temperature, making material selection for ball valves especially critical. Depending on the specific chemical properties, the following types of ball valves are commonly used: - Stainless Steel Ball Valves (304/316): Suitable for mildly corrosive or neutral media. - PTFE Lined Ball Valves: Ideal for highly aggressive substances such as strong acids and alkalis. - Plastic Ball Valves (e.g., UPVC, CPVC): Best suited for low-pressure, non-metallic systems operating at ambient temperatures. Moreover, to enhance automation and control efficiency, the use of pneumatic ball valves and electric ball valves is becoming increasingly common in chemical processing applications.

5. Food & Pharmaceutical Industry: Hygienic and Easy-to-Clean Design

The food and pharmaceutical industries impose stringent requirements on ball valves, emphasizing no dead space, easy cleaning, and contamination-free operation. In these settings, sanitary ball valves are commonly used. These valves feature: - Mirror-polished internal surfaces - Tri-clamp or quick-connect fittings - CIP (Clean-in-Place) capabilities They are typically made of 304 or 316L stainless steel, and their sealing materials must meet FDA standards to ensure product purity and system cleanliness. These valves are widely applied in the handling and control of fluids such as milk, beverages, purified water, and injectable solutions.

FAQ

Q1. Are ball valves suitable for all types of fluids?

Ball valves are compatible with most liquids and gases, including water, oil, natural gas, steam, and acidic or alkaline solutions. However, proper selection of valve material and sealing structure is crucial and should be based on the corrosiveness, temperature, and pressure of the specific medium.

Q2. What are the advantages of ball valves compared to gate valves and globe valves?

Ball valves offer a compact structure, quick quarter-turn operation, and low flow resistance, making them ideal for applications requiring frequent opening and closing. In comparison, gate valves are better suited for fully open or fully closed control, while globe valves are typically used for flow regulation.

Q3. What's the difference between full port and reduced port ball valves?

A full port ball valve has an opening that matches the inner diameter of the pipeline, resulting in minimal flow resistance. In contrast, a reduced port ball valve has a slightly smaller opening inside the ball, making it suitable for applications where flow rate is not critical, and it is generally more cost-effective.

Q4. Can ball valves be used in high-pressure or high-temperature systems?

Yes, they can. Industrial-grade ball valves, such as forged steel ball valves and metal-seated ball valves, are designed to handle pressures up to several hundred bar and temperatures of several hundred degrees Celsius. However, it is crucial to select the right valve type based on specific application conditions and system requirements.

Q5. How to determine if a ball valve needs an actuator?

If remote control or frequent operation is required, it is recommended to choose electric ball valves or pneumatic ball valves. For valves in locations that are difficult to access manually, adding an actuator can significantly improve control efficiency and safety.
