Stainless Steel Globe Valve DN40 PN40 LCC BS EN 13709
Key Specifications / Features
Model No.: Hits: 0
PN40 DN40 Globe Valve is made according to BS EN 13709 standard. The valve body is made of ASTM A352 Gr.LCC. It has the structural characteristics of BB, OS&Y, Straight Through, EN 558-1. Its connection mode is EN 1092-1 D. And it has Hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Globe Valve |
| Size | DN40 |
| Pressure | PN40 |
| Connection | EN 1092-1 D |
| Operation | Handle Wheel |
| Body Material | ASTM A352 Gr.LCC |
| Design Norm | EN13709 |
| Face to Face Dimensions | BS EN 558-1 |
| Flange Ends Dimensions | BS EN 1092-1 |
Features
1.Stainless Steel Globe Valve DN40 PN40 BS EN 13709 provides excellent corrosion resistance and precise flow control, ideal for chemical and aggressive media applications (stainless steel globe valve DN40 PN40).2.LCC Globe Valve BS EN 13709 ensures reliable sealing performance and compliance with international standards for stable operation in low-temperature service (LCC globe valve PN40 DN40).

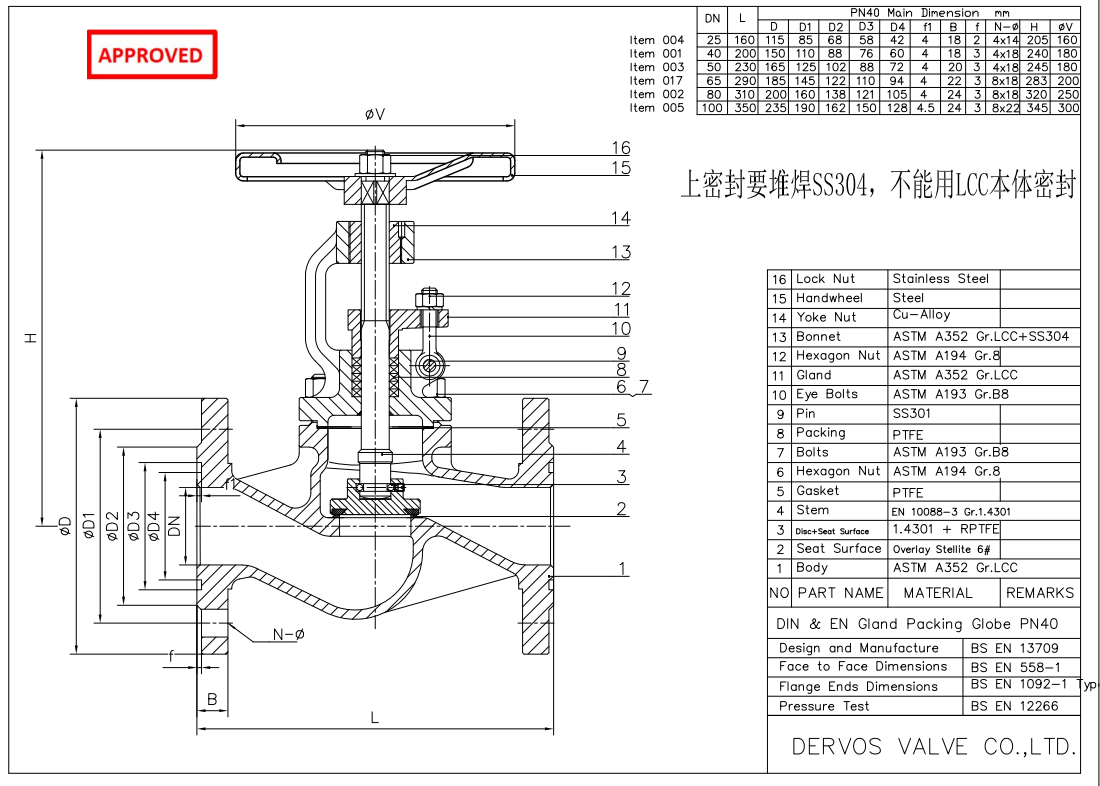

Technical Drawing

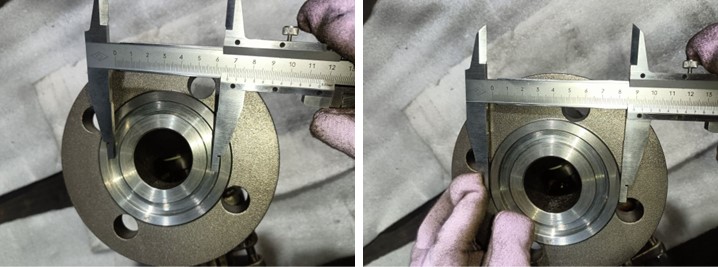

Dimension Checking

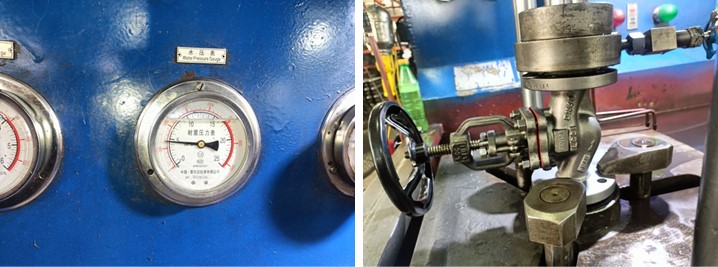

Pressure Testing

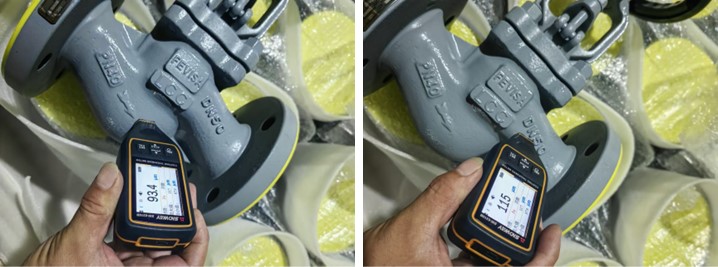

Painting
Spectrum

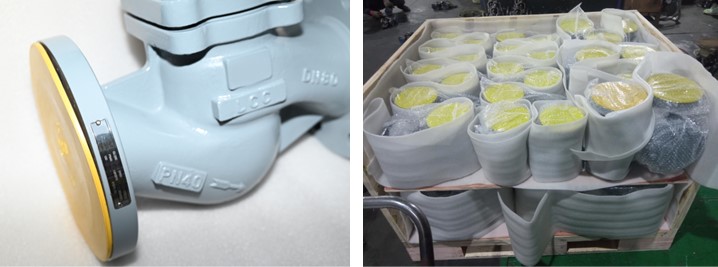

Nameplate & Packing
