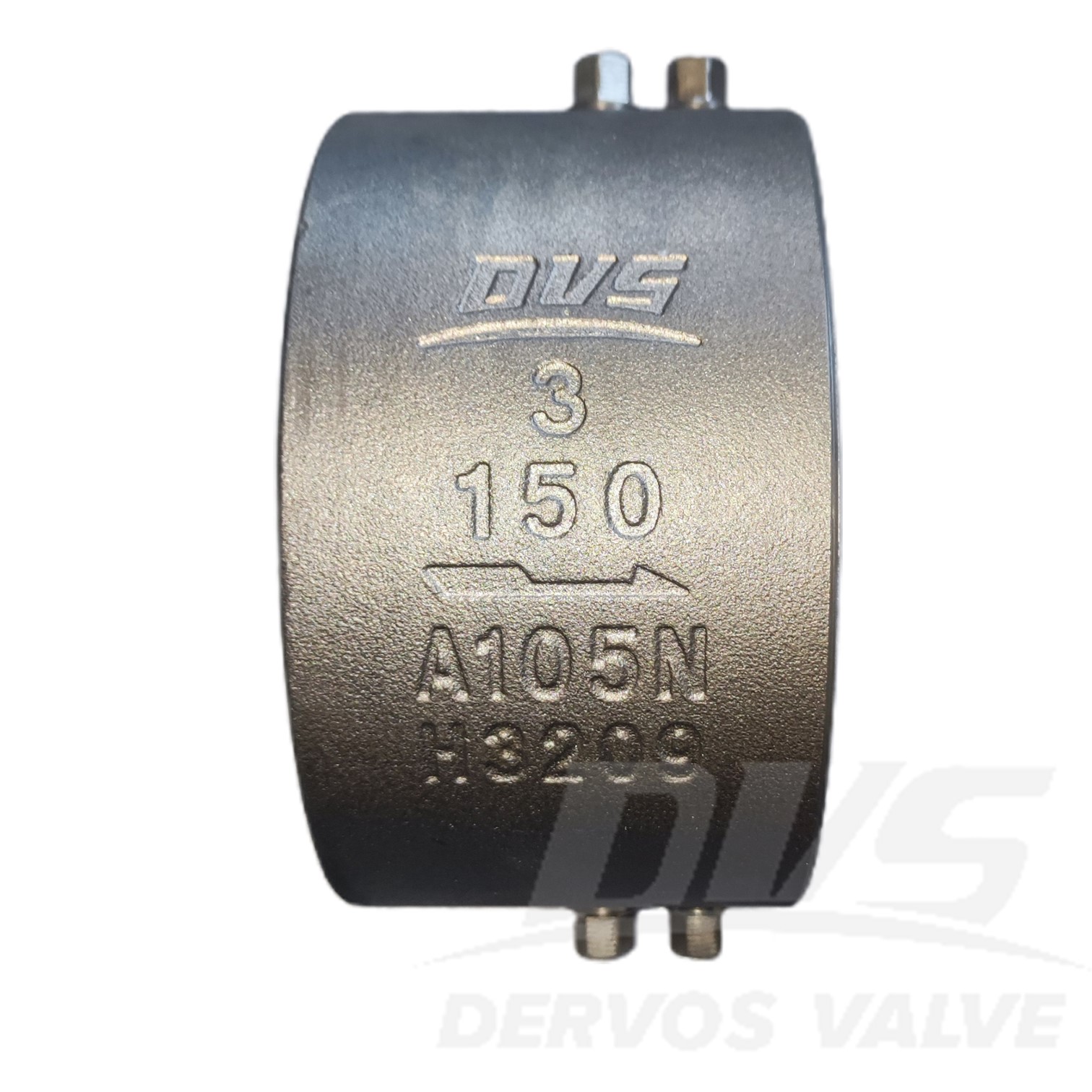

3” 150LB Dual Plate Wafer Type Check Valve A105N API 594

3” 150LB Dual Plate Wafer Type Check Valve A105N API 594
3” 150LB Dual Plate Wafer Type Check Valve A105N API 594

Key Specifications / Features

Model No.: Hits: 0

3” 150LB Dual Plate Wafer Type Check Valve is made according to API 594 standard. The valve body is made of A105N+SS316. It has the structural characteristics of Double Plate Wafer. Its connection mode is Wafer.
Request a quote

Next: DN25 PN40 Single Plate Wafer Type Check Valve A105 API594

Previous: 4” CL600 Dual Plate Wafer Check Valve WCB LUG API594

Detail Information

Product Description

Type Dual Plate Wafer Type Check Valve
Size 3”
Pressure 150LB
Connection Wafer
Body Material A105N+SS316
Design Norm API 594
Face to Face API594
Flange dimension ASME B16.5
Test & Inspection Code API 598
Temperature -29 ~ 425°C
Applicable Medium Water, Oil and Gas

Features

1.Constructed from A105N carbon steel, ensuring high strength, durability, and reliable performance.
2.Dual plate wafer type design meets API 594 standards for efficient backflow prevention and space-saving installation.

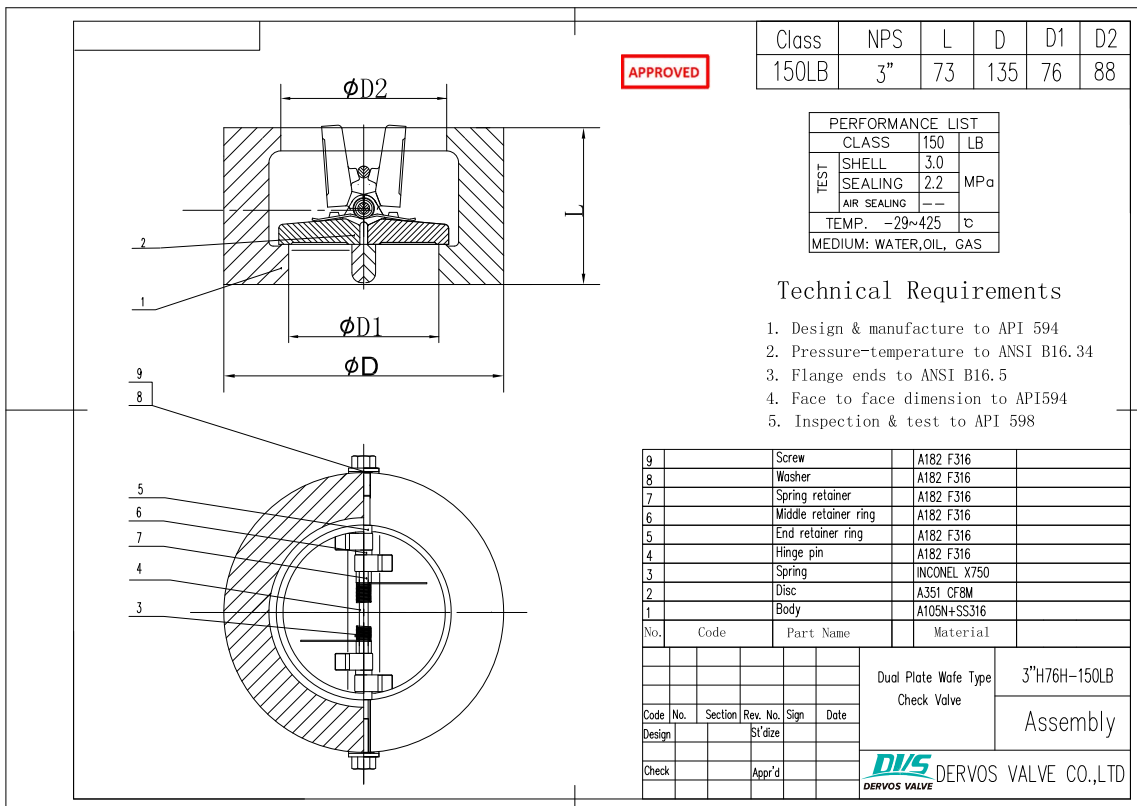

Technical Drawing

Dual Plate Wafer Check Valve

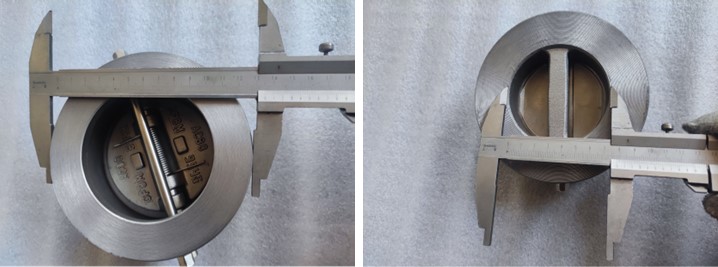

Dimension Checking

Dual Plate Wafer Check Valve

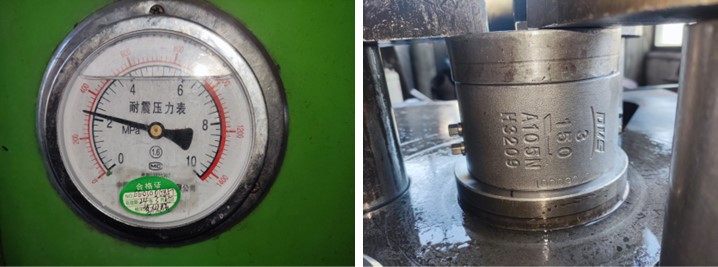

Pressure Testing

Dual Plate Wafer Check Valve

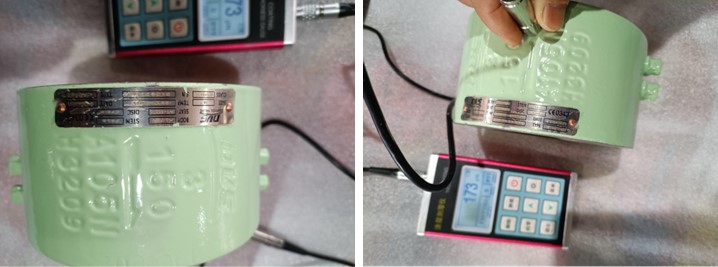

Painting

Dual Plate Wafer Check Valve

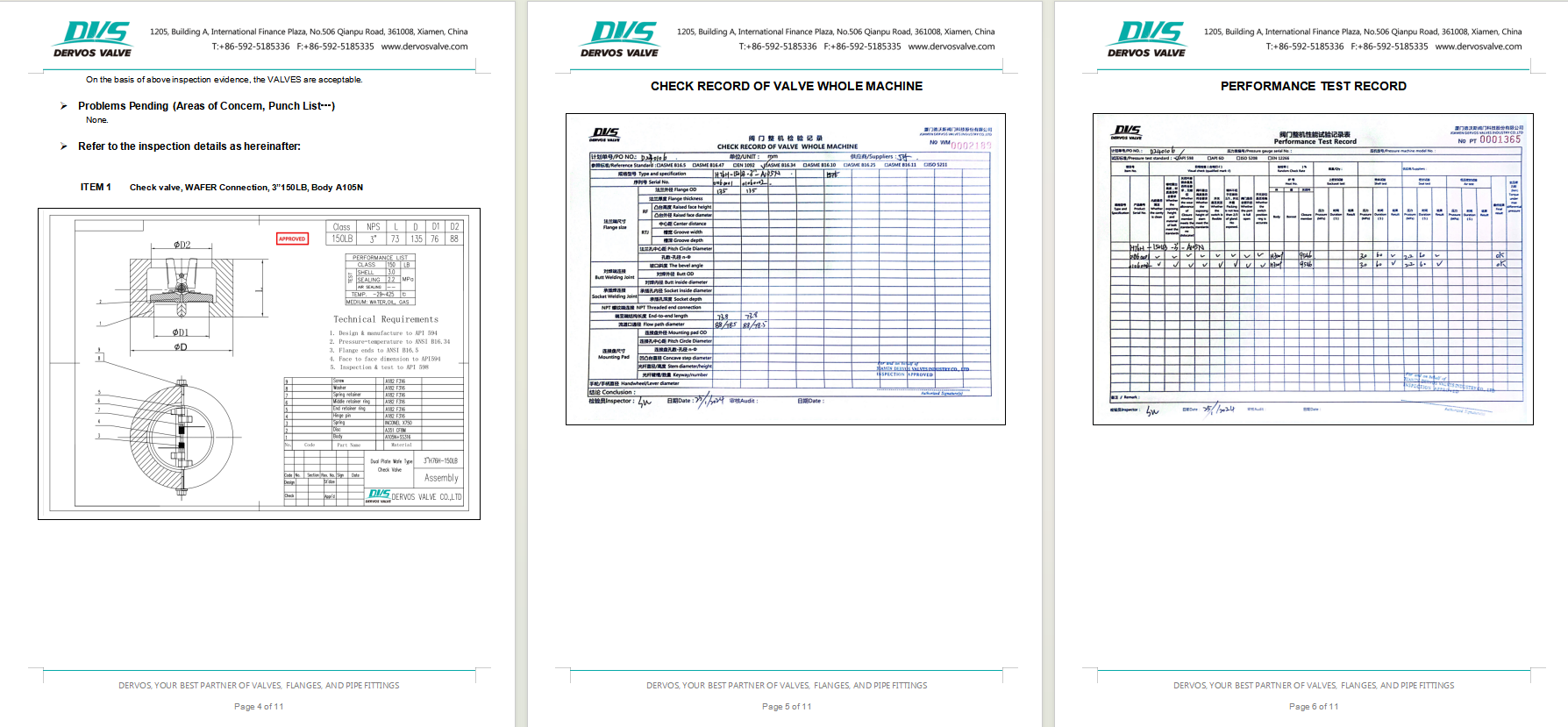

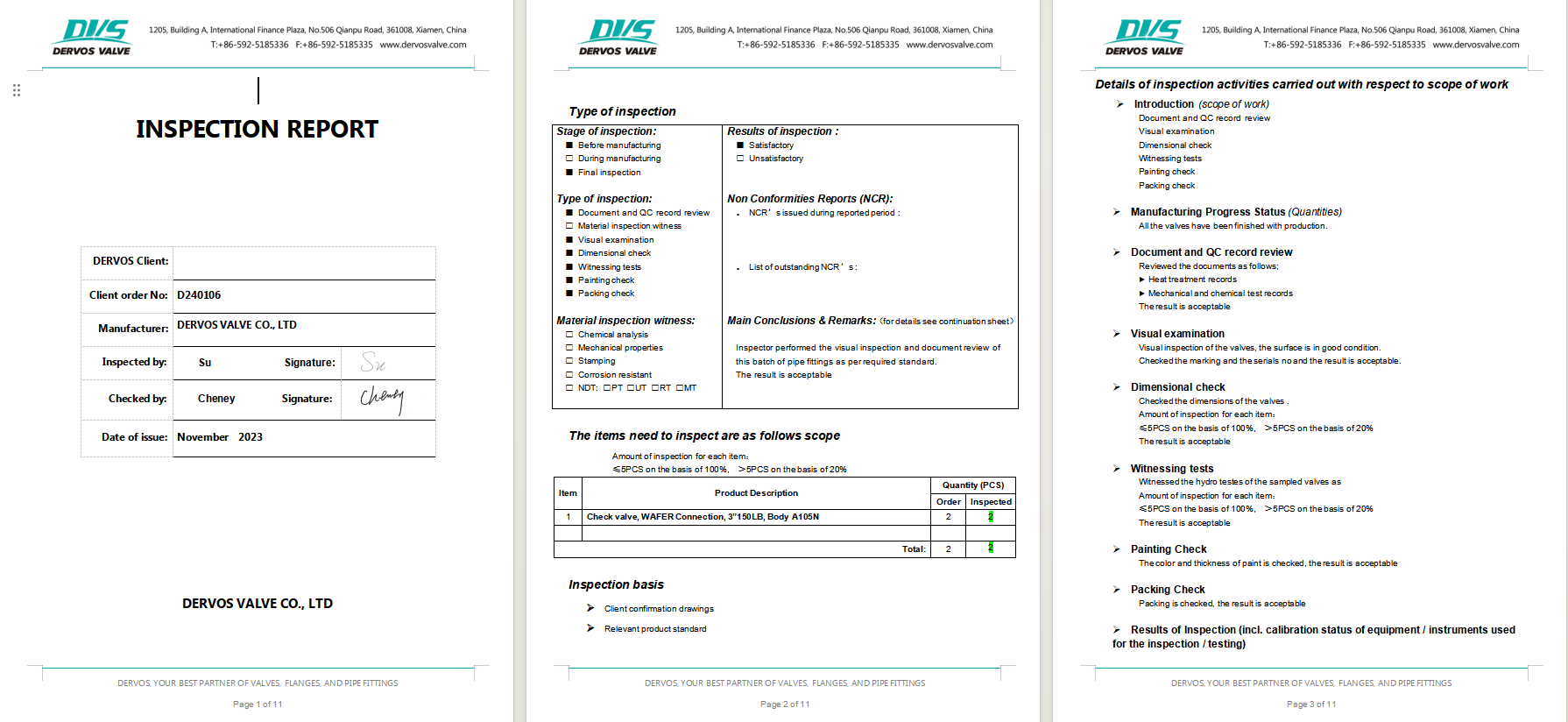

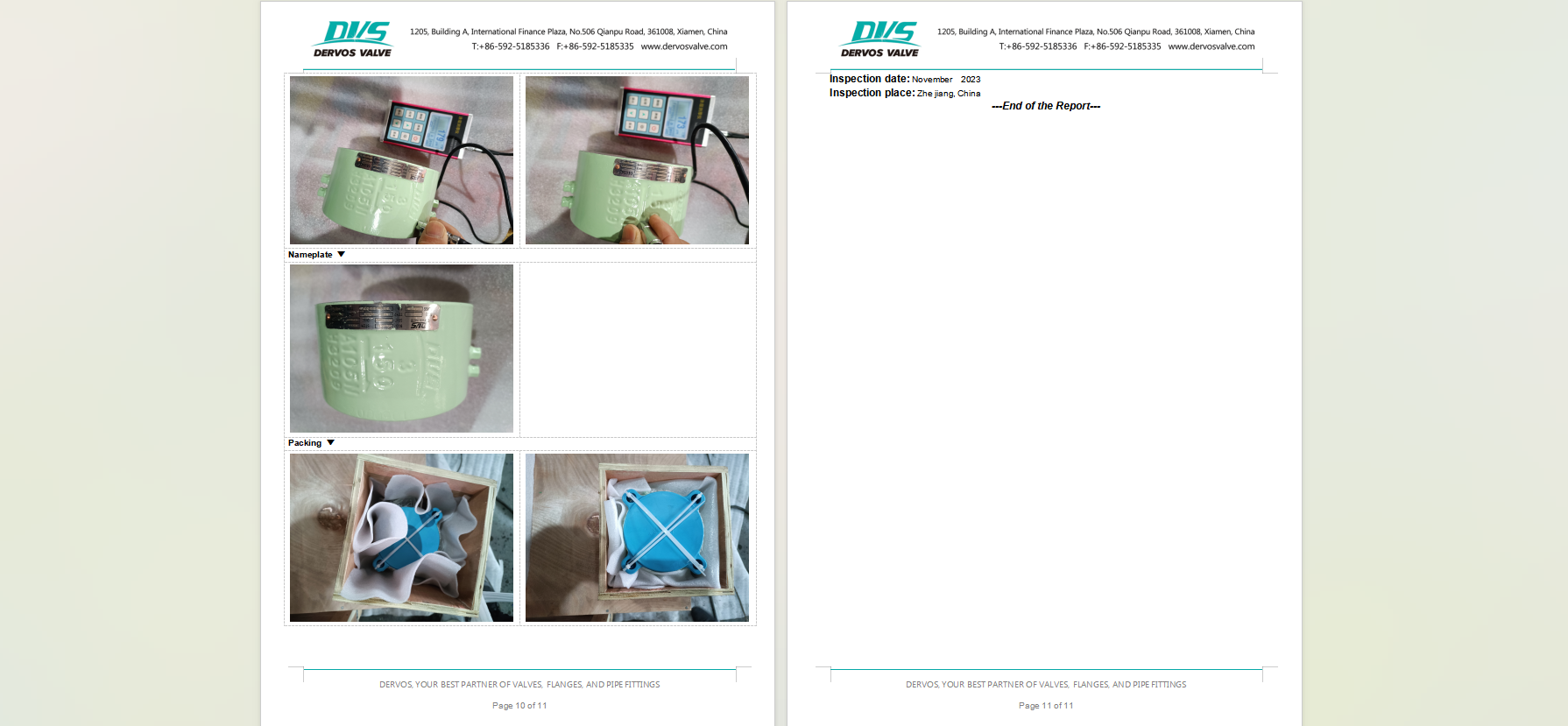

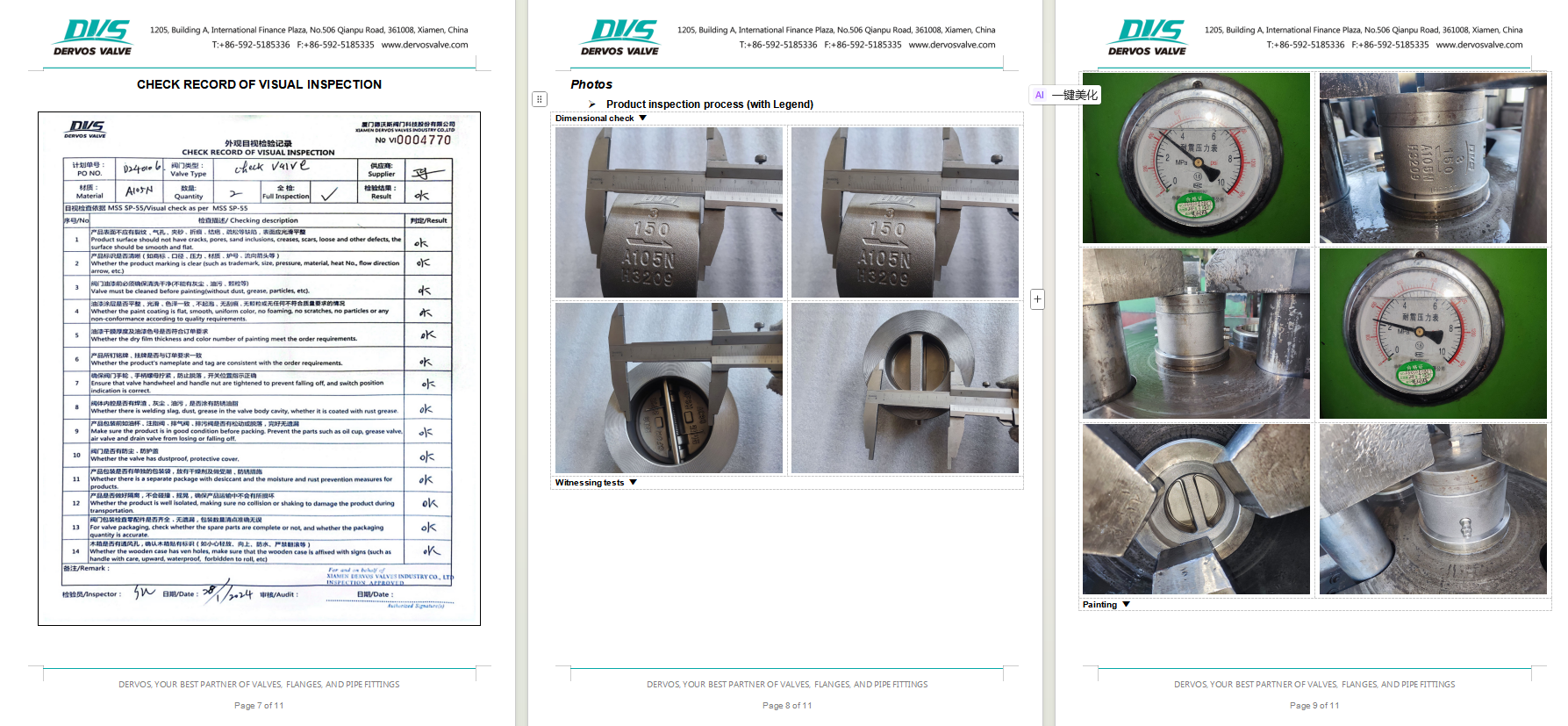

Inspection Report
Dual Plate Wafer Check ValveDual Plate Wafer Check ValveDual Plate Wafer Check Valve

Dual Plate Wafer Check Valve
