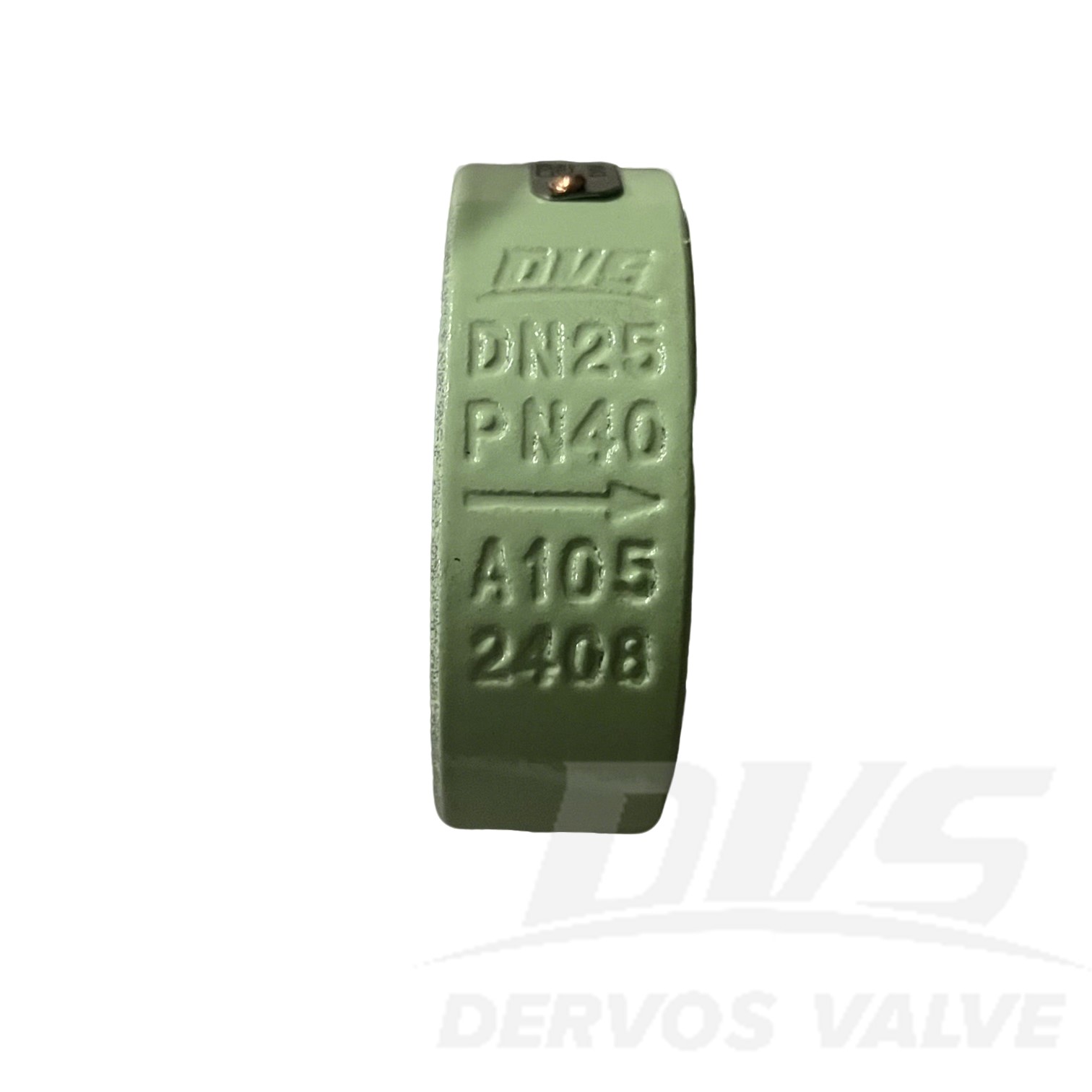

DN25 PN40 Single Plate Wafer Type Check Valve A105 API594
Key Specifications / Features
Model No.: Hits: 0
DN25 PN40 Single Plate Wafer Type Check Valve is made according to API594 standard. The valve body is made of A105+STL. It has the structural characteristics of Single Disc Wafer Check Valve, Spring-Loaded Lift Type. Its connection mode is Wafer Type, Flat Face (FF).
Request a quote
Tags:
Detail Information
Product Description
| Type | Single Plate Wafer Type Check Valve |
| Size | DN25 |
| Pressure | PN40 |
| Connection | Wafer Type, Flat Face (FF) |
| Body Material | A105+STL |
| Design Norm | API594 |
| Face to Face | En558-1Ser.49 |
| Flange ends | En 1092-1 |
| Test & Inspection Code | EN 12266 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Made of A105 forged steel, this DN25 single plate wafer check valve ensures durable performance and reliable corrosion resistance.2.Designed according to API 594 standards, it provides efficient one-way flow control and easy installation between PN40 flanges.

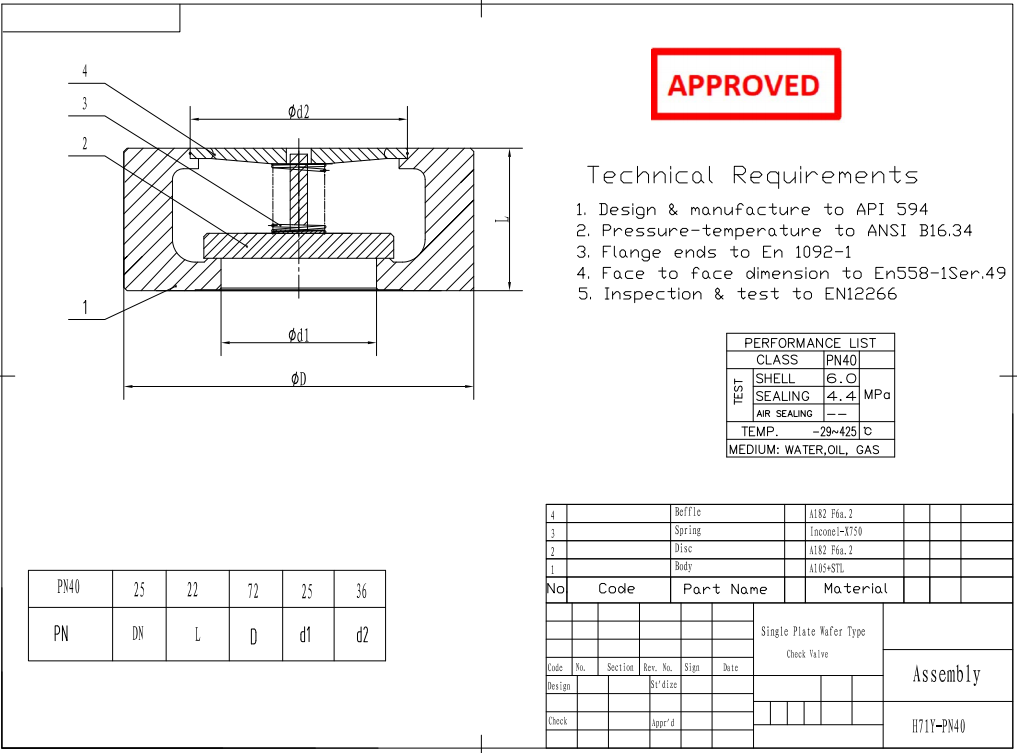

Technical Drawing

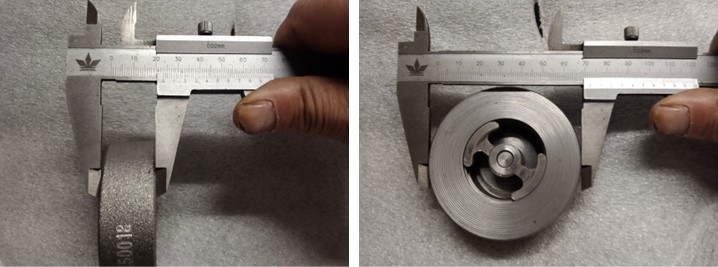

Dimension Checking

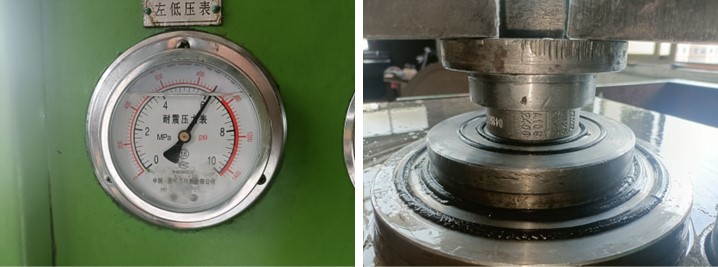

Pressure Testing

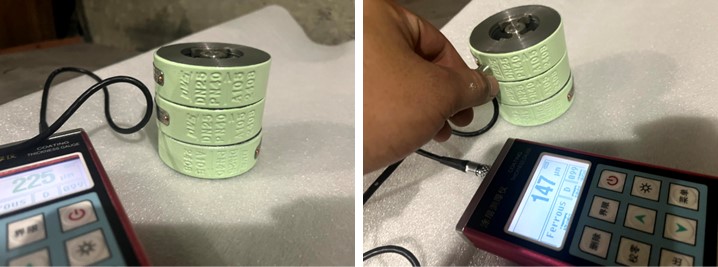

Painting

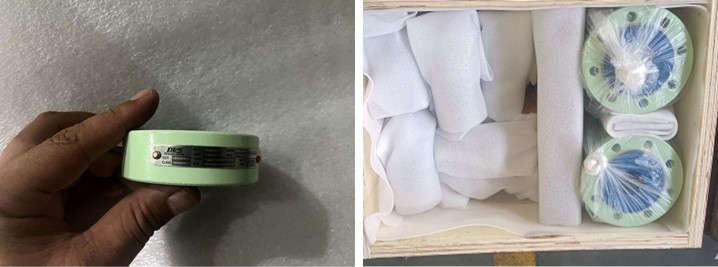

Nameplate & Packing
