8" 150LB Three-Piece Forged Steel Trunnion Ball Valve RF A105
Key Specifications / Features
Model No.: Hits: 0
8" 150LB Trunnion Ball Valve is made according to ASME B16.34 standard. The valve body is made of A105. It has the structural characteristics of Three-Piece, Side Entry, Trunnion Mounted Ball, Full Bore, Fire-Safe and Anti-Static, Blow-Out Proof Stem, Double Block and Bleed (DBB). Its connection mode is RF. And it has Turbine operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Trunnion Ball Valve |
| Size | 8” |
| Pressure | 150LB |
| Connection | RF |
| Operation | Worm gear |
| Body Material | A105 |
| Design Norm | API 6D |
| Face to face | API 6D |
| Flange | ASME B16.5 |
| Test & Inspection Code | API 6D |
| Temperature | -20 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Trunnion-mounted ball design reduces operating torque and ensures stable sealing for large-diameter applications.2.Three-piece forged A105 steel construction allows easy maintenance while providing high strength and durability.

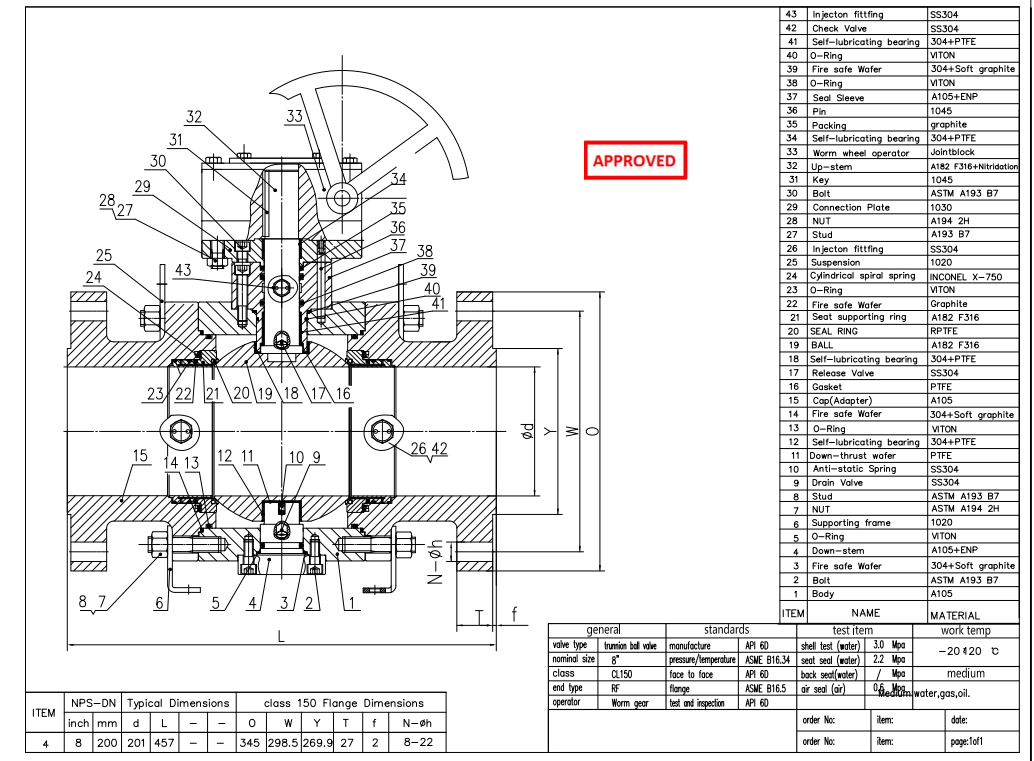

Technical Drawing

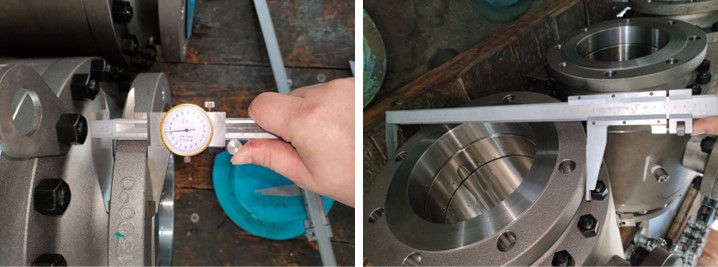

Dimension Checking

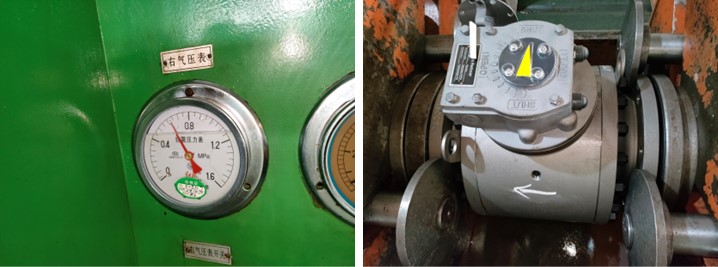

Pressure Testing

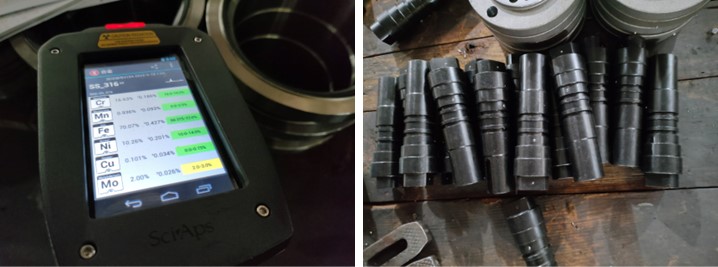

Spectrum

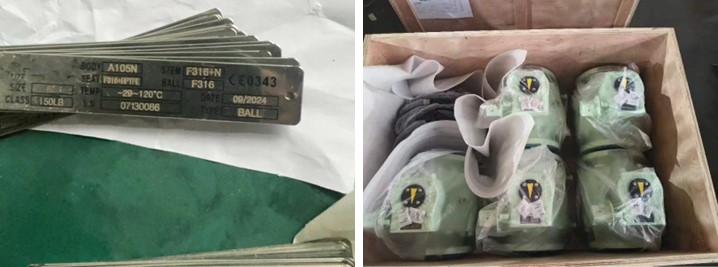

Nameplate & Packing

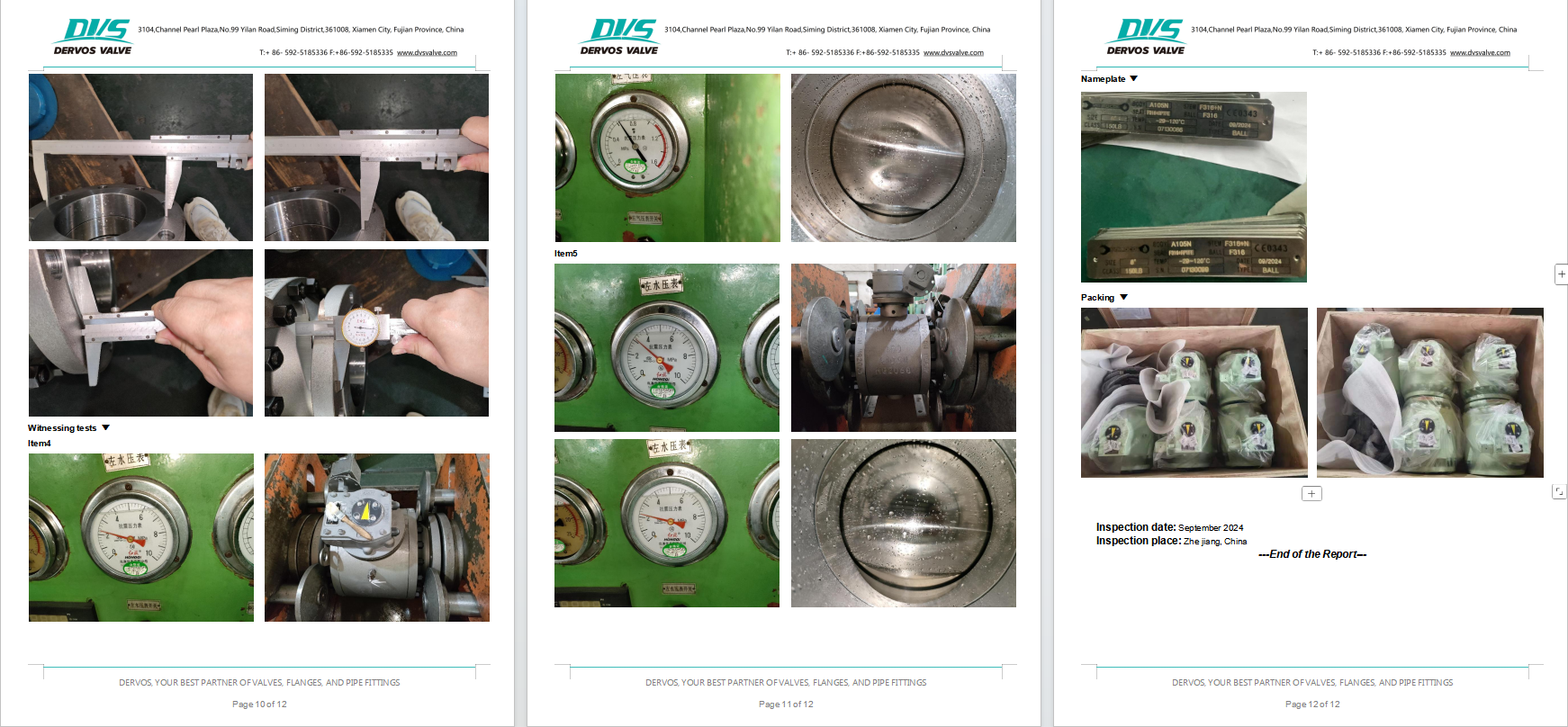

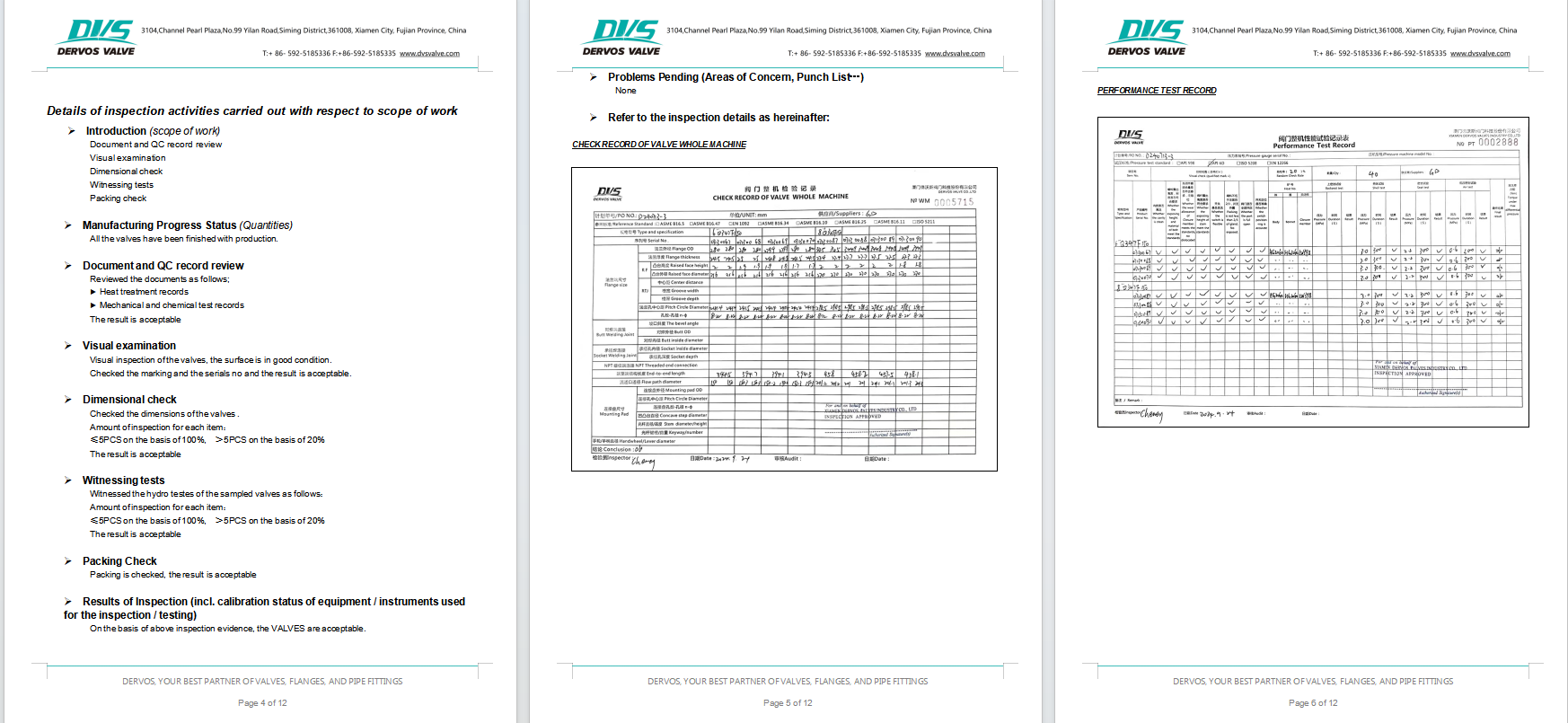

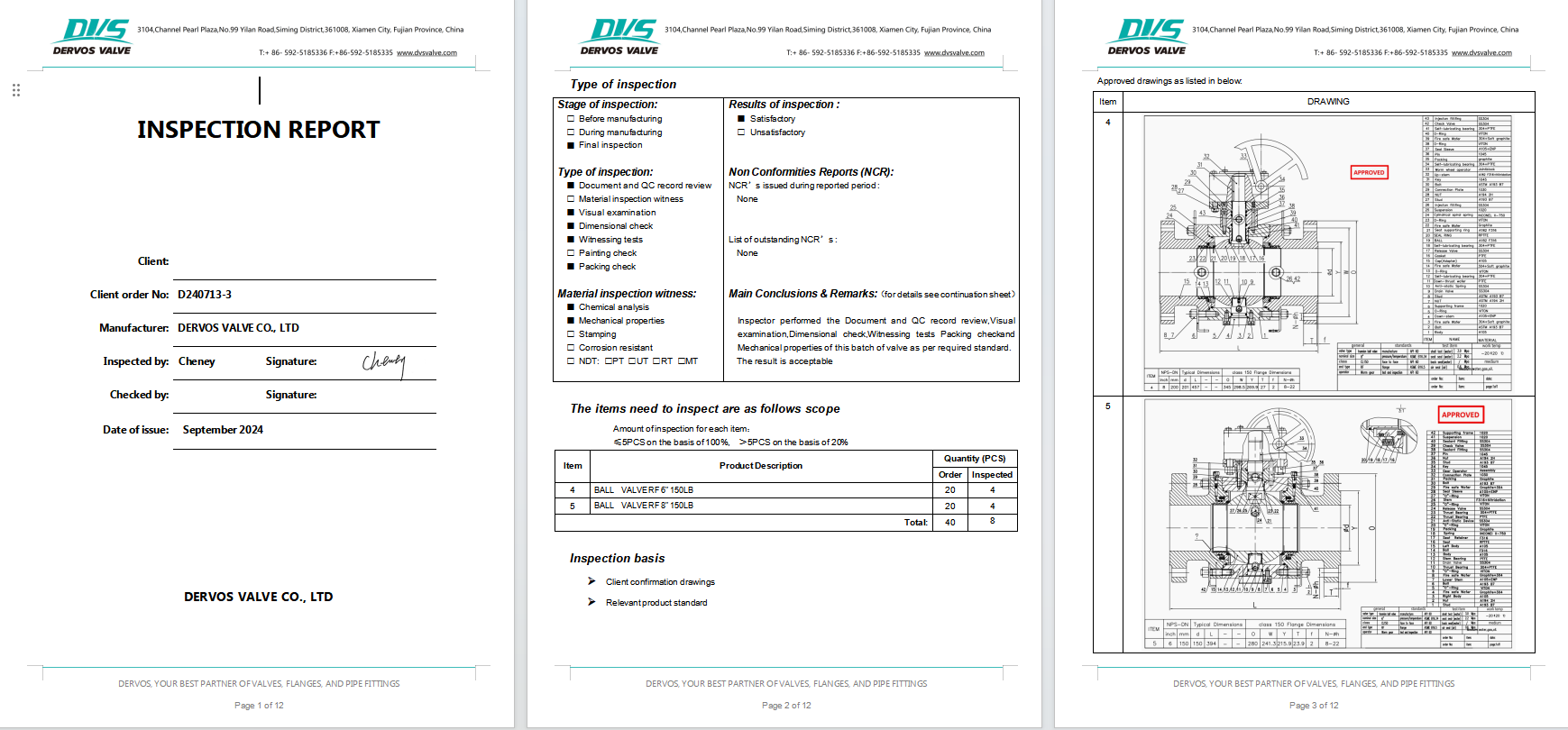

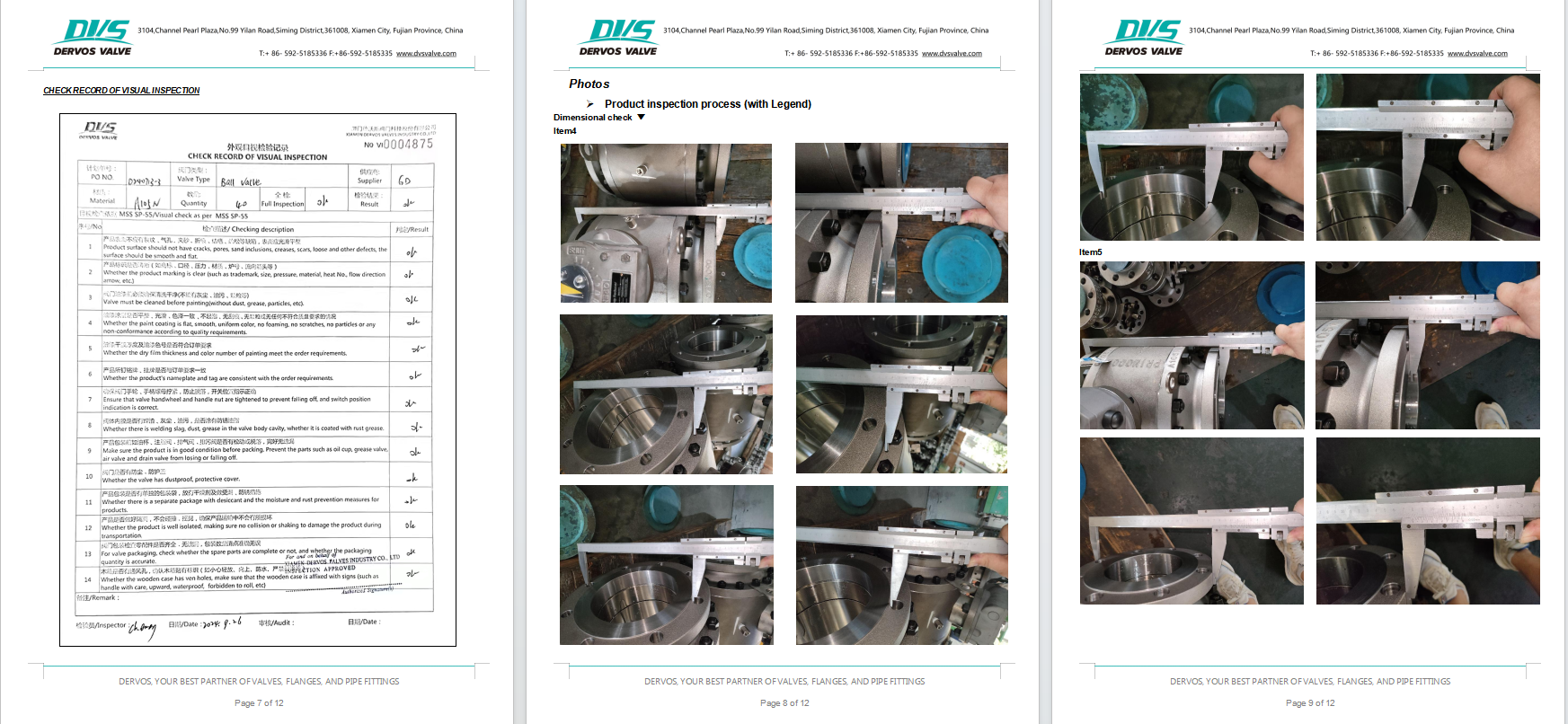

Inspection Report
