Ductile Iron Gate Valve 3" 150LB FF WCC EN-GJS-500-7 AWWA C509
Key Specifications / Features
Model No.: Hits: 0
3" 150LB gate valve is made according to AWWA C509 standard. The valve body is made of EN-GJS-500-7 . It has the structural characteristics of Rising Stem, Full Bore, Full-Face Flange. Its connection mode is FF. And it has Hand Wheel operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Stainless Steel Gate Valve 4" 150LB RF CF3 API 600
Detail Information
Product Parameters
| Type | Ductile Iron Gate Valve |
| Size | 3” |
| Pressure | 150LB |
| Connection | FF |
| Operation | Hand wheel |
| Body Material | EN-GJS-500-7 |
| Design Norm | AWWA C509 |
| Face to face | ANSI B16.10 |
| Flange | ANSI B16.1/ANSI B16.5 |
| Test & Inspection Code | EN-GJS-500-7 |
| Temperature | 0 ~ 80°C |
| Applicable Medium | Water |
Features
1.Ductile Iron Gate Valve 3" 150LB FF EN-GJS-500-7 AWWA C509 provides reliable shut-off performance and excellent mechanical strength for water distribution systems (ductile iron gate valve AWWA C509).2.Full Face Ductile Iron Gate Valve ensures secure sealing and long service life with corrosion-resistant construction, ideal for municipal and industrial water applications (3 inch 150LB gate valve EN-GJS-500-7).

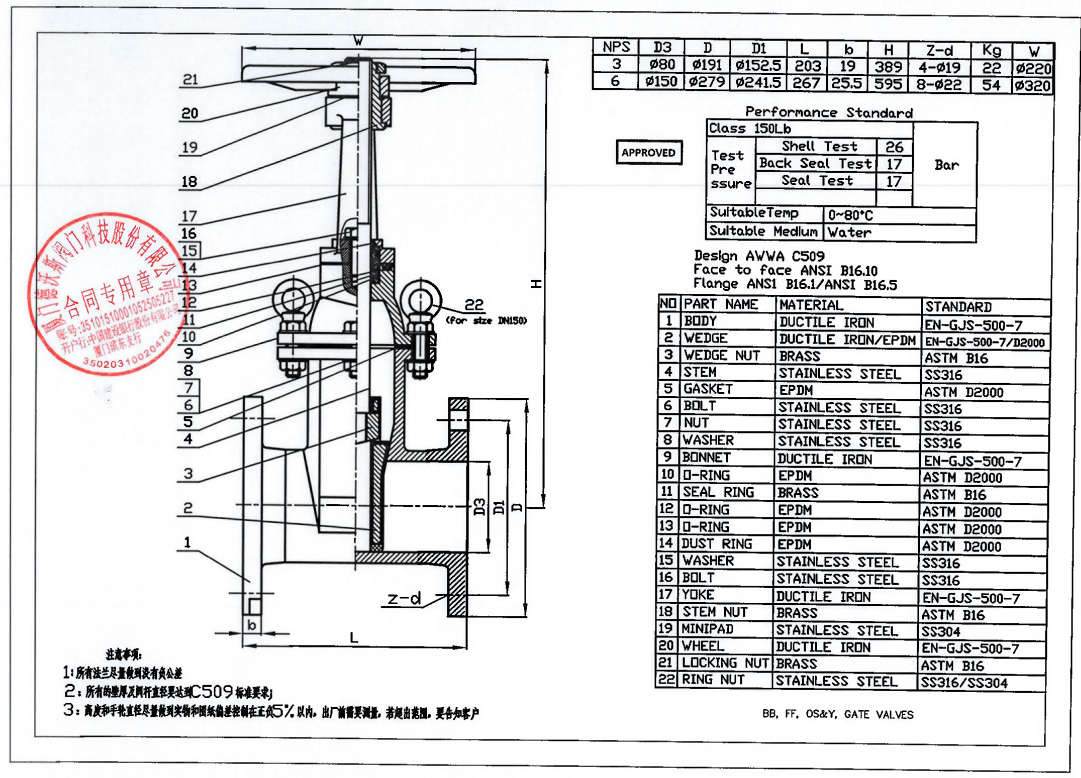

Technical Drawing

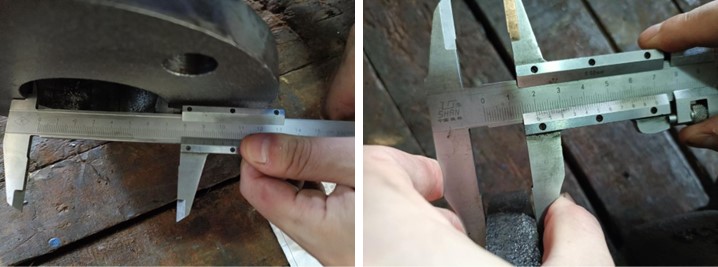

Dimension Checking

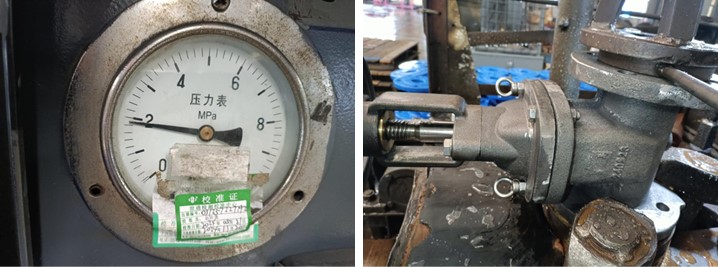

Pressure Testing

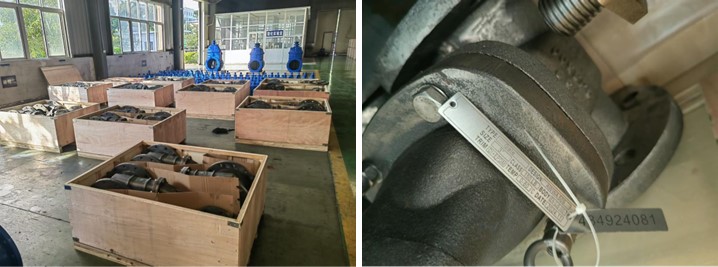

Nameplate & Packing

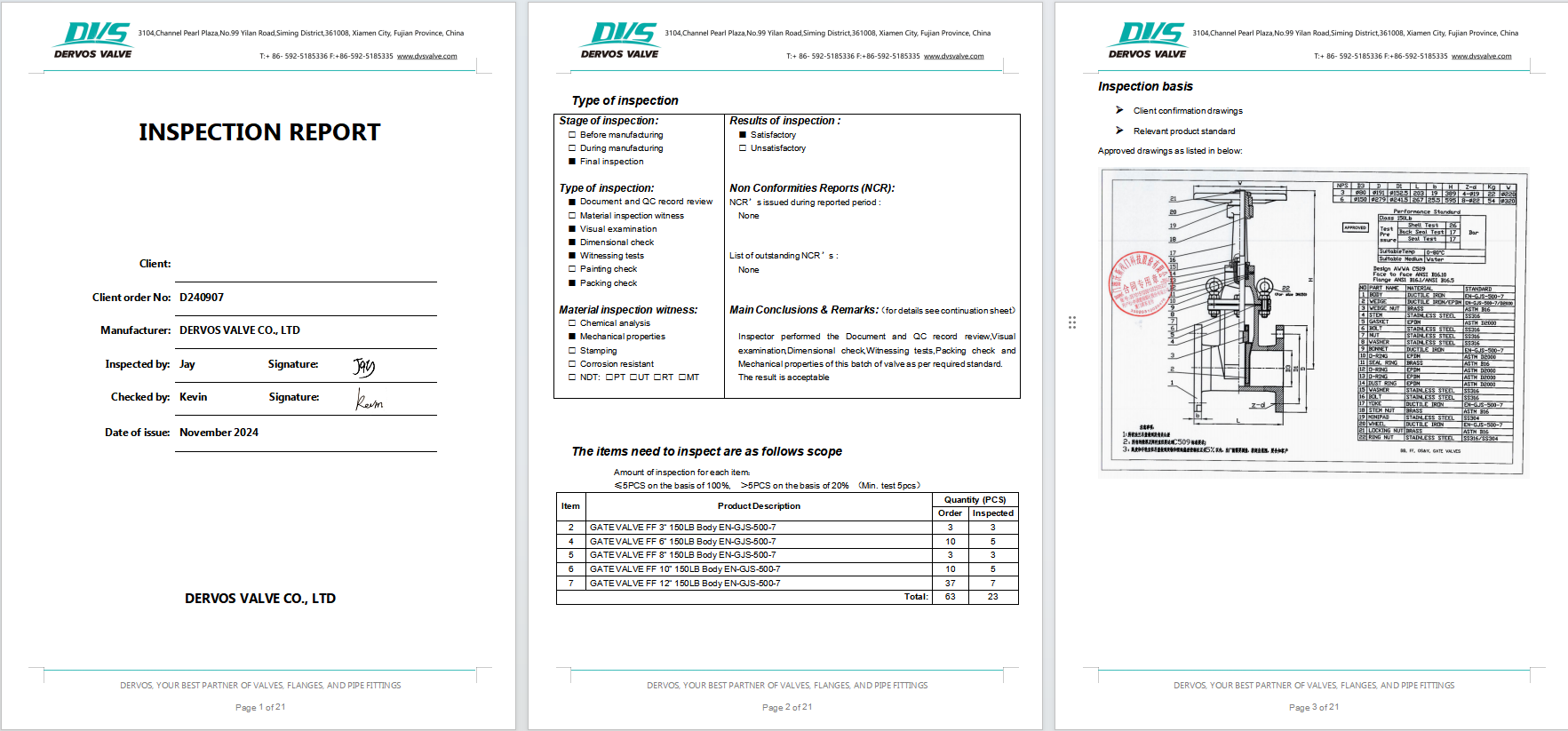

Inspection Report
