Stainless Steel Gate Valve 4" 150LB RF CF3 API 600
Key Specifications / Features
Model No.: Hits: 0
4" 150LB Stainless Steel Gate Valve is made according to API 600 standard. The valve body is made of CF3. It has the structural characteristics of Bolted Bonnet, Rising Stem, Flexible Gate. Its connection mode is RF. And it has hand wheel operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Stainless Steel Gate Valve 4" 150LB RF CF3 API 600
Detail Information
Product Parameters
| Type | Stainless Steel Gate Valve |
| Size | 4” |
| Pressure | 150LB |
| Connection | RF |
| Operation | Hand wheel |
| Body Material | A351 CF3 |
| Design Norm | API 600 |
| Face to Face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 300°C |
| Applicable Medium | Water, Oil and Steam |
Features
1.Stainless Steel Gate Valve 4" 150LB RF CF3 API 600 provides excellent corrosion resistance and reliable tight shut-off, ideal for chemical and industrial pipeline systems (CF3 gate valve 150LB API 600).2.RF Flanged Stainless Steel Gate Valve ensures secure installation and long service life with stable sealing performance under low to medium pressure conditions (4 inch 150LB gate valve CF3).

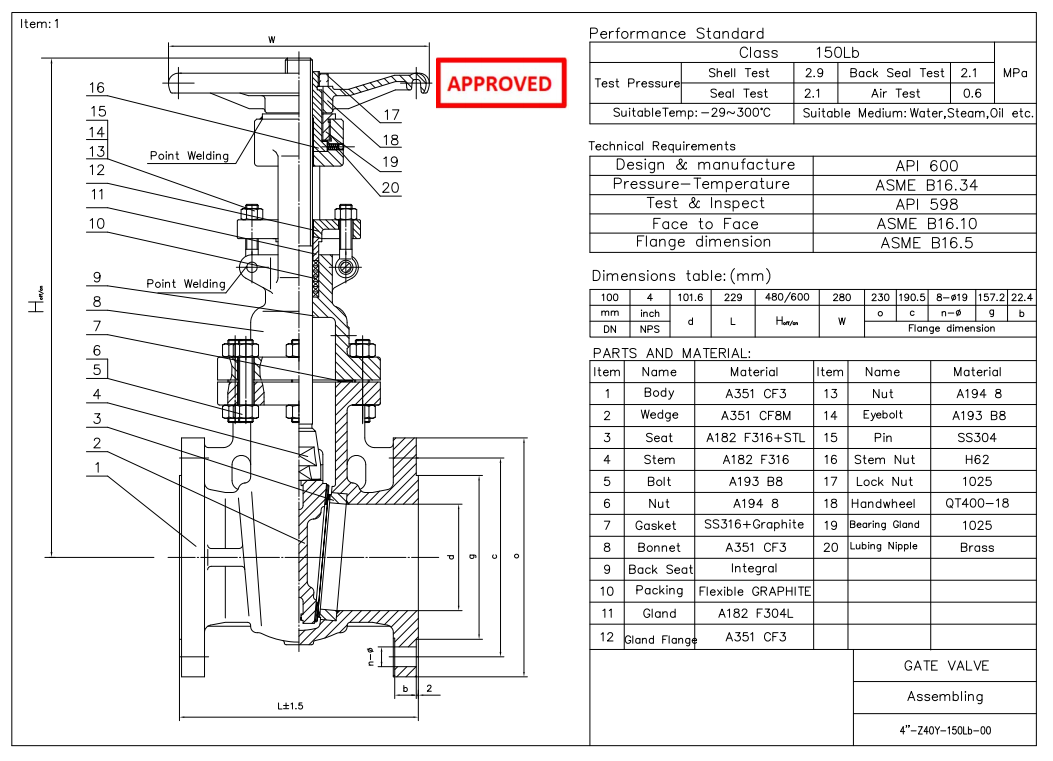

Technical Drawing

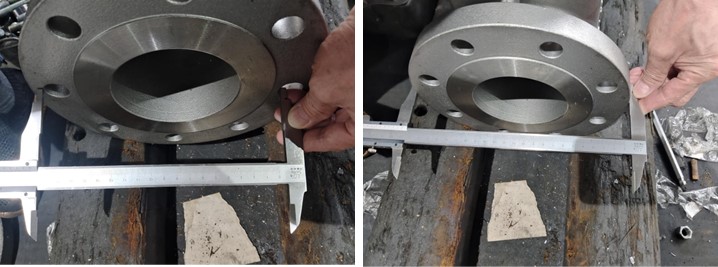

Dimension Checking

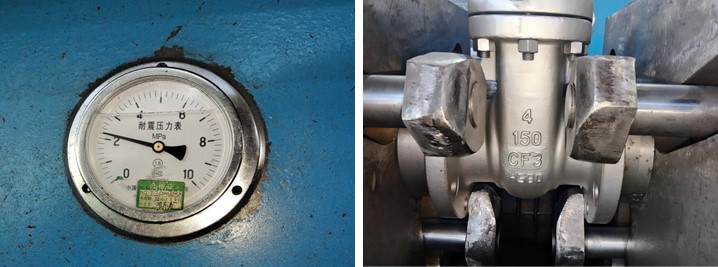

Pressure Testing
Painting

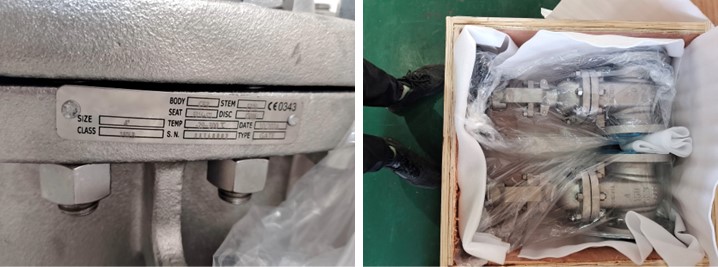

Nameplate & Packing

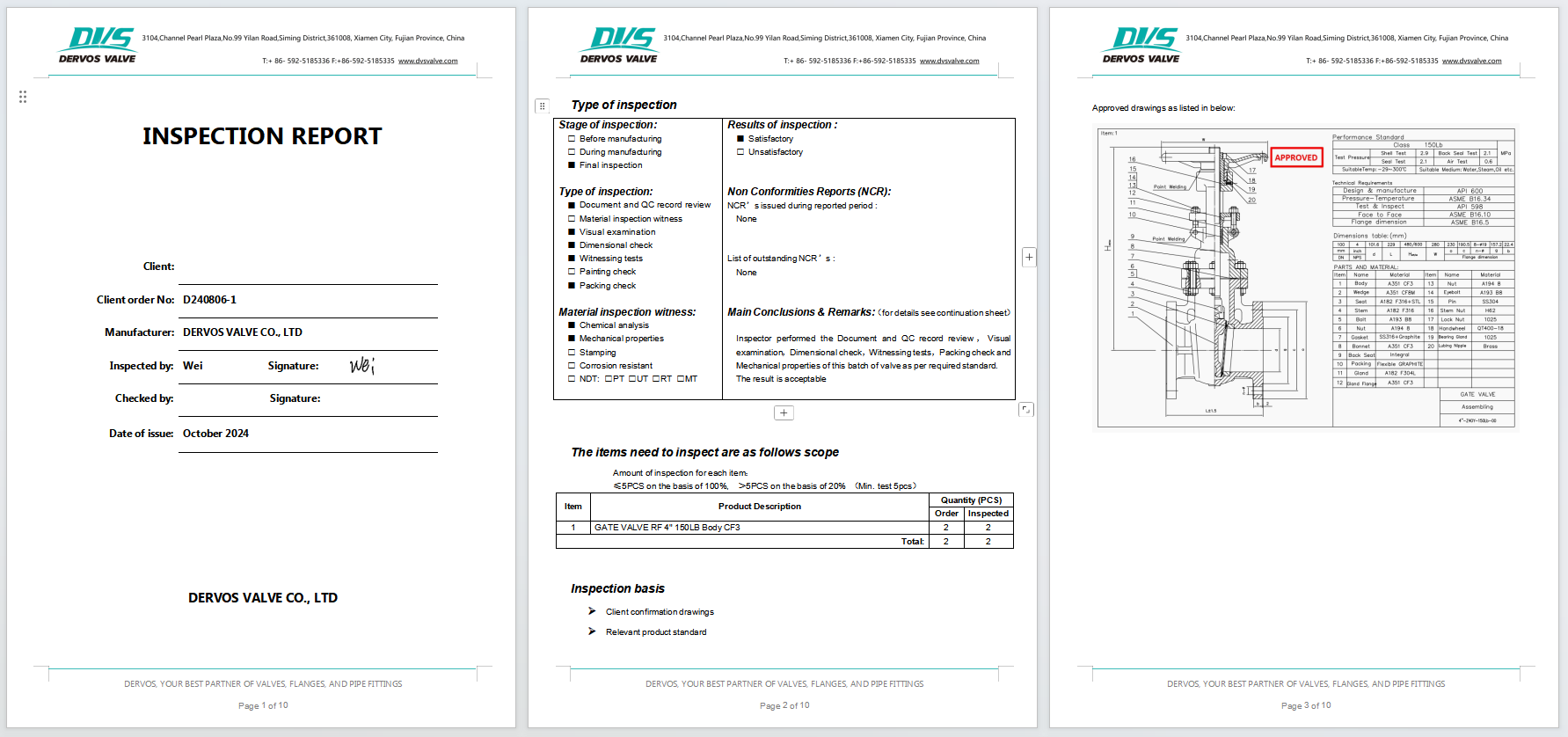

Inspection Report
